CNC Gantry Milling for Trailer Frames
High-Precision Machining for Hydraulic Modular Trailers
RUITRAILER delivers heavy-duty CNC gantry milling solutions tailored for modular trailer chassis, steering arms, and coupling plates. We eliminate assembly misalignment by ensuring flawless flatness and unified datum consistency across all critical structures.
Heavy-Duty Travel Range
Extended stroke capacity engineered for multi-axle vehicle structures and long main beams.
Geometric Precision
Strict control over flatness, parallelism, and hole-pattern true position tolerances.
In-Process Inspection
On-machine probing paired with certified CMM dimensional reports for verified tracking.
Max Travel
Up to 12 Meters
Flatness Control
Within ±0.05mm
Material Support
High-Strength Q690/Q960
Quality Assurance
100% Traceable
CNC Gantry Milling Target Components for Hydraulic Modular Trailers
Heavy-Duty Frame & Platform Structure
- High-strength main longitudinal beams
- Rigid crossbeams and outriggers
- Heavy load-bearing reinforcement plates
- Top and bottom deck plate assembly surfaces
Steering, Suspension & Articulation Joints
- Multi-axle steering beams and links
- Suspension control arm brackets
- Hydraulic cylinder trunnions and ear seats
- Inter-modular swivel and hinge connection plates
Precision Hole Patterns & Mounting Interfaces
- High-tolerance locating hole arrays for modular coupling
- Heavy-duty coupling pin and bolt holes
- Coaxial steering shaft seat bores
- Hydraulic manifold, pipe, and valve block mounting faces
- Heavy-load structural connection flanges
Overcoming Critical Manufacturing Bottlenecks
- • Post-Weld Distortion: We eliminate structural warpage to prevent module misalignment.
- • Hole Position Deviation: True positional accuracy ensures flawless bolt-on component assembly.
- • Surface Flatness Deficiencies: Large-plane milling eliminates gaps at critical load distribution interfaces.
- • Cumulative Datum Errors: One-setup multi-face milling replaces inaccurate multi-stage referencing.
- • High Field-Fitting Costs: Factory-precision machining eliminates time-consuming on-site rework and modification.
Key Precision Benchmarks & Assembly Datum Strategies
At RUITRAILER, we translate strict GD&T engineering requirements into measurable machining data, eliminating structural misalignment and field-fitting issues for heavy-duty modular trailers.
Surface Flatness & Parallelism
Ensures perfect alignment of the main platform assembly surfaces and modular connection interfaces to secure seamless bolting.
- Tight tolerances defined and executed based on custom blueprint specifications
- Eliminates gaps on critical load-bearing mounting flanges
Hole Pattern Position & Coaxiality
Guarantees the exact spatial relationships for multi-axis steering pin holes, cylinder pivot seats, and articulation brackets.
- In-line boring techniques keep long-span pin holes perfectly coaxial
- Prevents structural binding during high-tonnage wind blade transit
Perpendicularity & Angular Precision
Maintains absolute verticality for side references and precise angles on suspension arm seats and goose-neck adapters.
- Multi-axis indexing heads enable precise angular milling from a single setup
- Optimizes stress distribution across the entire trailer frame chassis
Interchangeability & Batch Consistency
Maintains strict lot-to-lot tolerance control, allowing effortless cross-module coupling and component swapping.
- Standardized CNC program paths reduce human error across multi-vehicle orders
- Drastically minimizes on-site assembly adjustments and fleet maintenance downtime
Advanced Clamping Strategy & Weldment Deformation Control
Machining massive welded trailer frames requires more than large machine travels; it demands a comprehensive strategy to manage internal stress. RUITRAILER prevents part warping and preserves geometric alignment by deploying specialized modular fixtures and systematic cutting sequences.
Unified Reference Datum
Locks in core assembly datums from start to finish, preventing cumulative stack-up errors during multiple operations.
Symmetric Stress-Relief Machining
Utilizes balanced, multi-pass rough-to-finish sequences to gradually relieve internal welding stresses without altering dimensional shapes.
Single-Coordinate Feature Processing
Machines critical mounting surfaces and hole arrays within a single coordinate origin to secure high-precision positional tolerance.

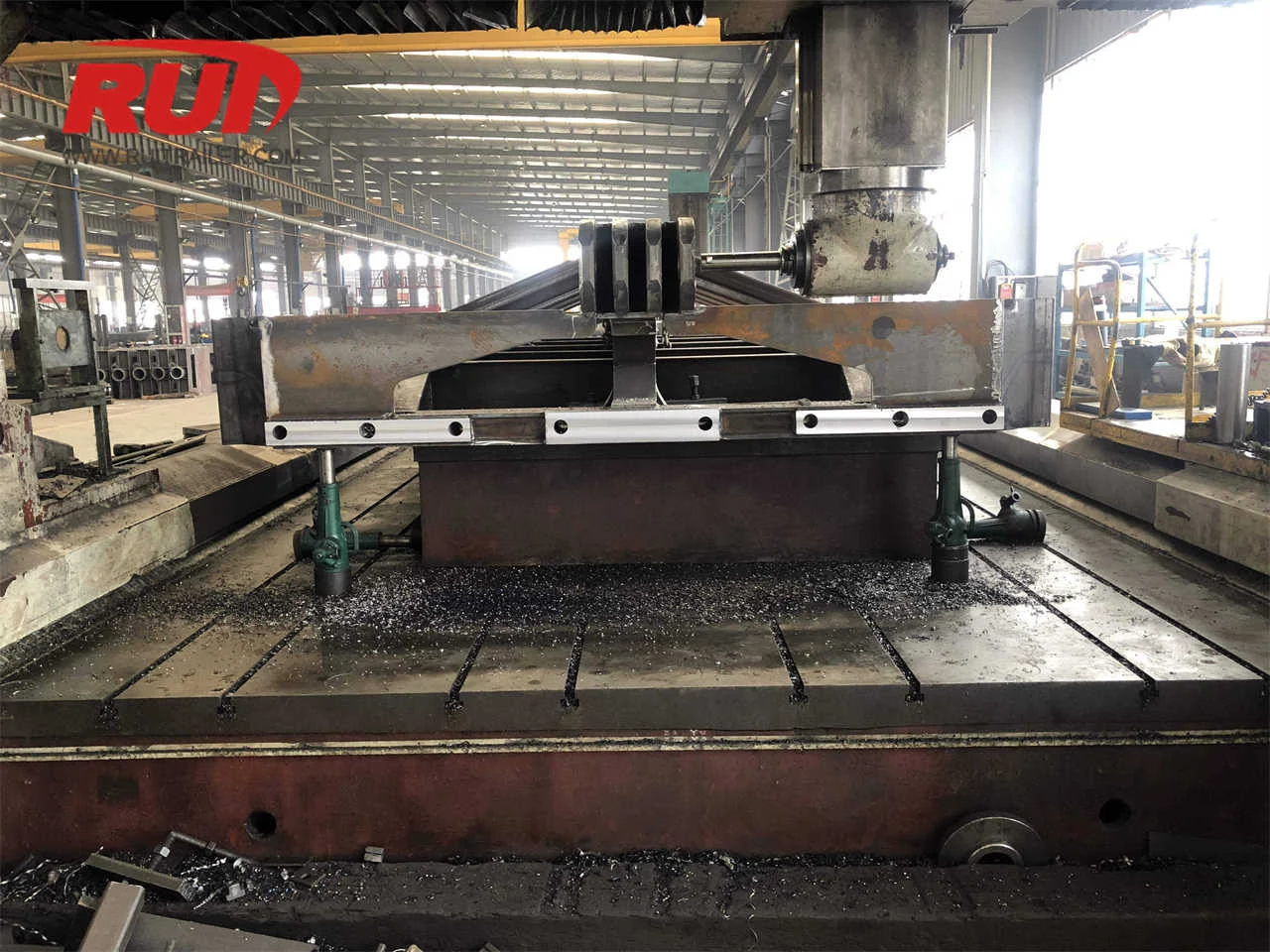

Heavy-Duty CNC Gantry Milling Capacity Overview for Hydraulic Modular Trailer Chassis & Components
- Large-Scale Travel & Load Capacity: Engineered for single-setup machining of massive wind turbine blade trailer frames and heavy-duty steering beams, eliminating cumulative positioning errors.
- High-Torque Spindle & Precision Cutting: Combines heavy-duty roughing efficiency on weldments with high-surface-finish fine milling for flawless component assembly interfaces.
- Right-Angle & Universal Head Configurations: Facilitates multi-axis adaptability to machine complex side profiles, cylinder ear seats, and angled connecting flanges without repositioning.
- Custom Tooling & Modular Fixturing: Equipped with dedicated jigs, heavy modular clamps, and quick-locating pin systems to strictly control weldment deformation and inner stress.
- Advanced Material Compatibility: Specialized in precision machining for high-strength steel (Q690D/HG785 or equivalent), alloy steels, multi-pass welded structures, and critical cast steel hinge joints.
Advanced Process Upgrades & Quality Control Options:
- In-process touch probes and laser tool setters for real-time datum validation
- High-capacity automatic tool changers to optimize multi-stage boring and milling cycles
- High-pressure internal cooling and automated chip evacuation systems for deep hole boring
- Thermal drift compensation to guarantee batch-to-batch structural consistency
Advanced CNC Machining Process for High-Precision Trailer Structures
(Customizable to your specific engineering and GD&T requirements)-
1

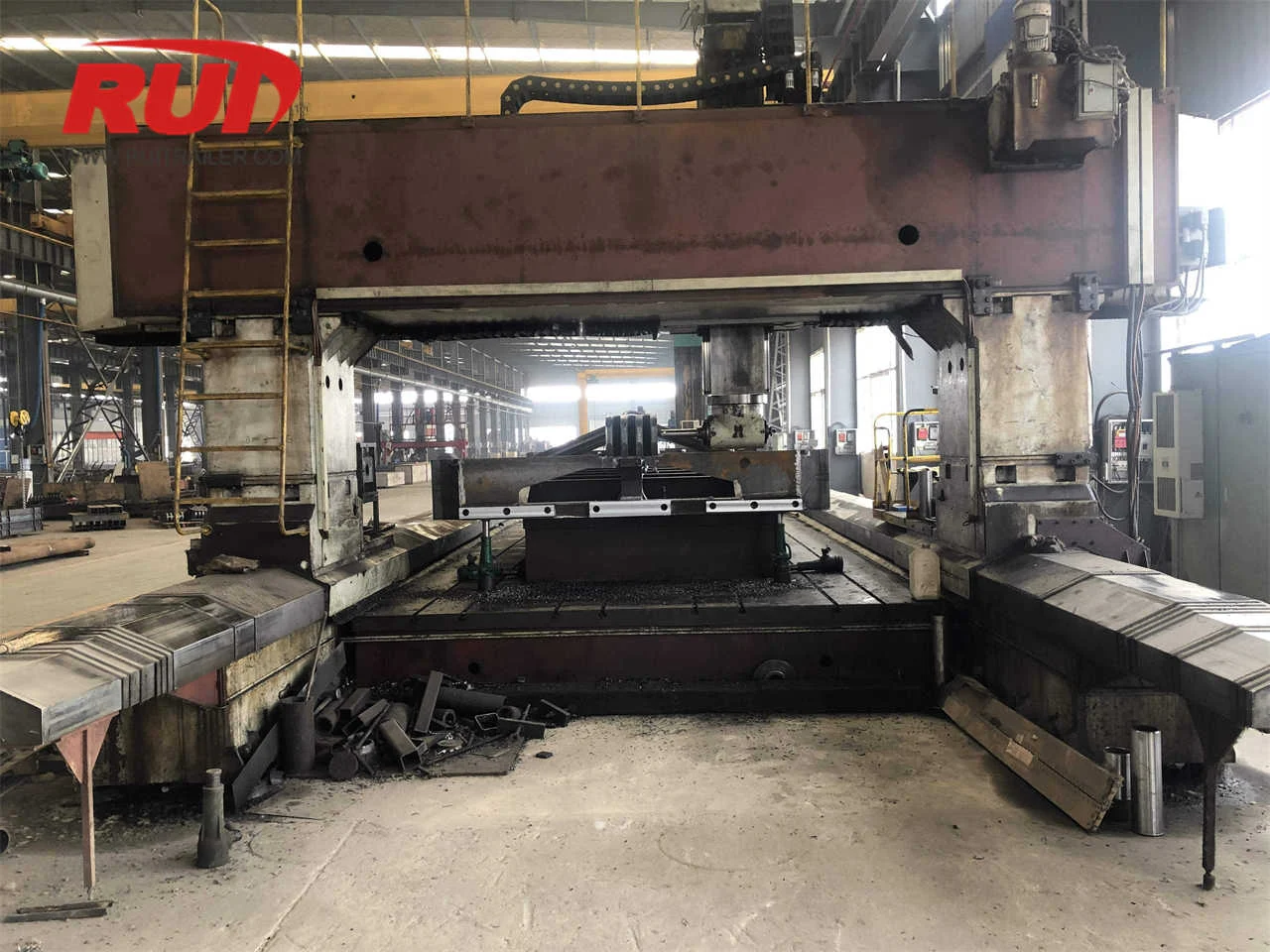

Drawing & Datum Review
We audit your 2D/3D files to align key assembly surfaces, hole patterns, and dimensional constraints before machining begins.
-
2

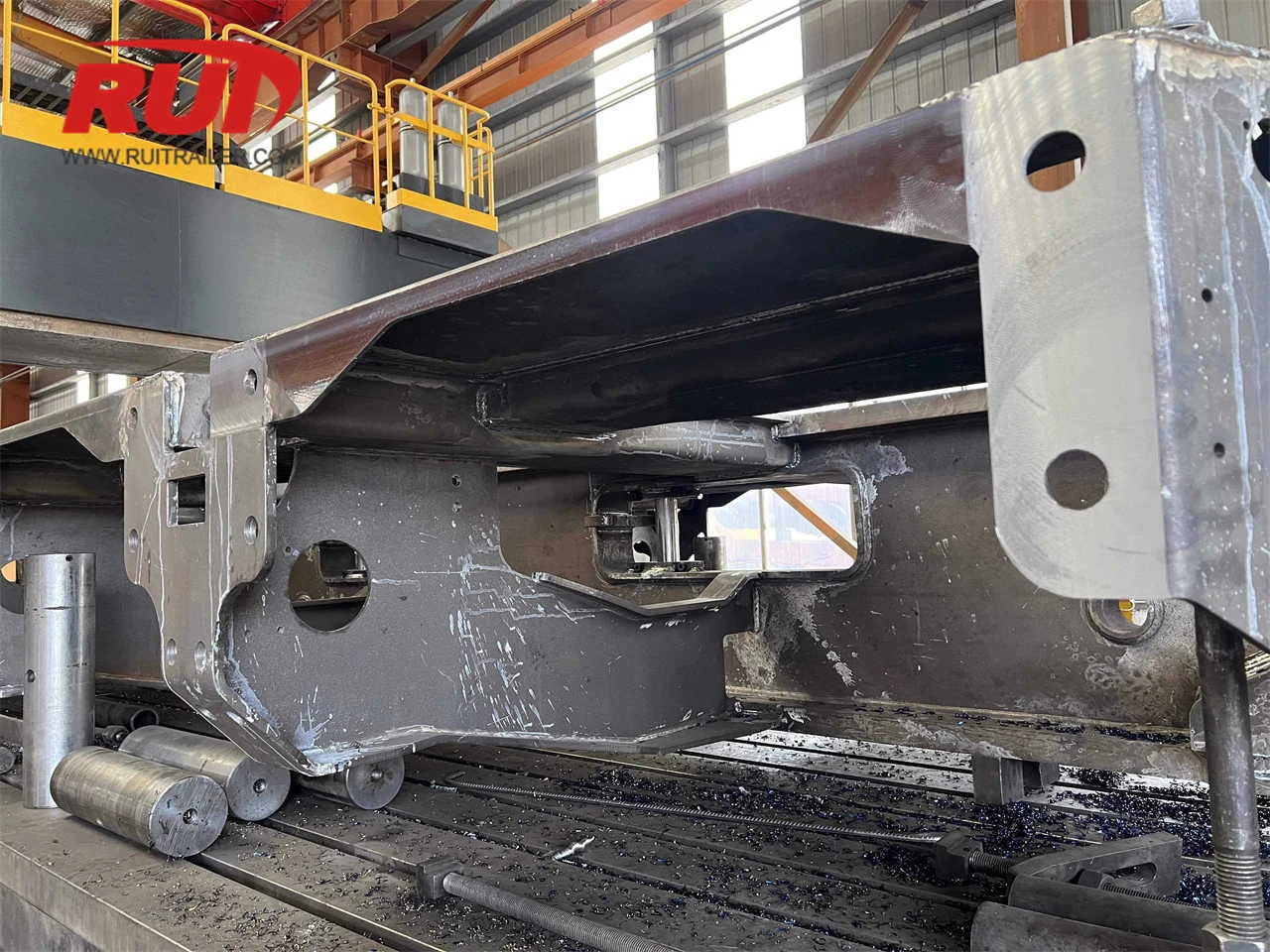

Weldment Evaluation
Inspect raw welded frames for structural integrity, measure machining allowances, and implement specialized flattening protocols.
-
3

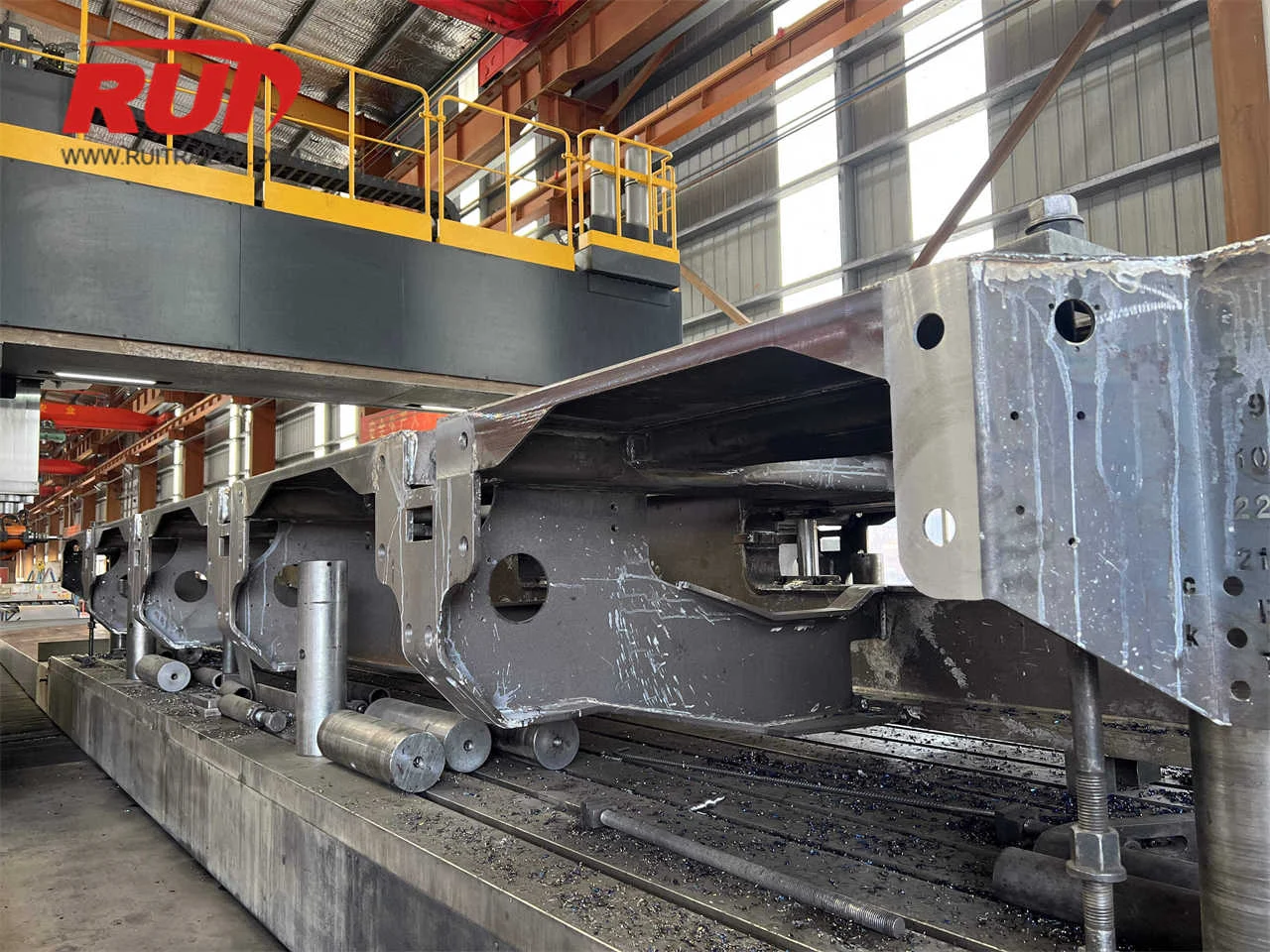

Roughing & Stress Relief
Heavy-duty layered milling combined with symmetrical material removal to mitigate internal stress and prevent post-weld deformation.
-
4

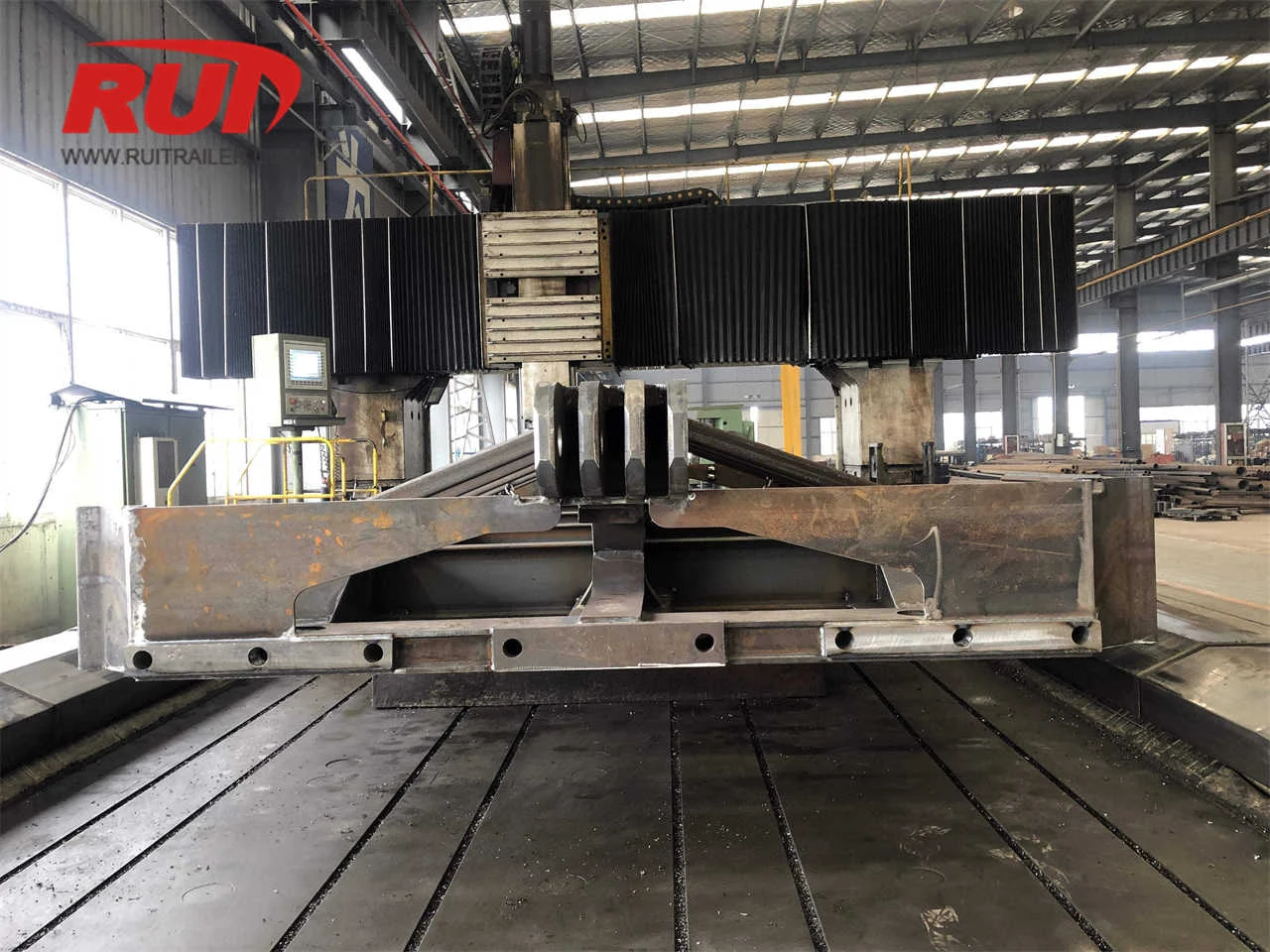

Semi-Finishing & Re-survey
Pre-bore pin positions and rough-cut critical faces while executing mid-stage measurement checks to account for any material shift.
-
5

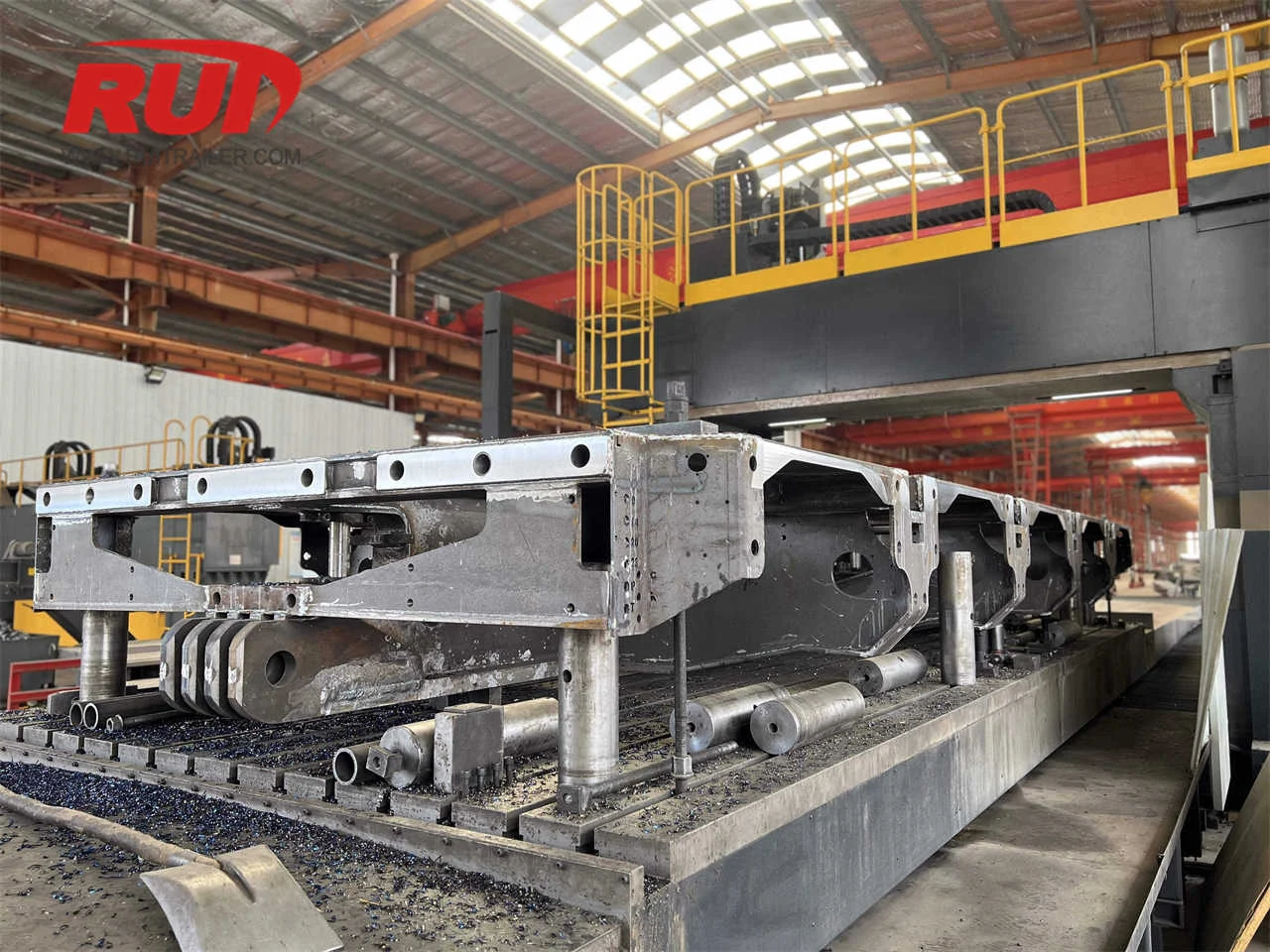

Unified Machining
RUITRAILER mills your modular vehicle's master frames, suspension seats, and flange connections in a single coordinate setup for optimum coaxiality.
-
6

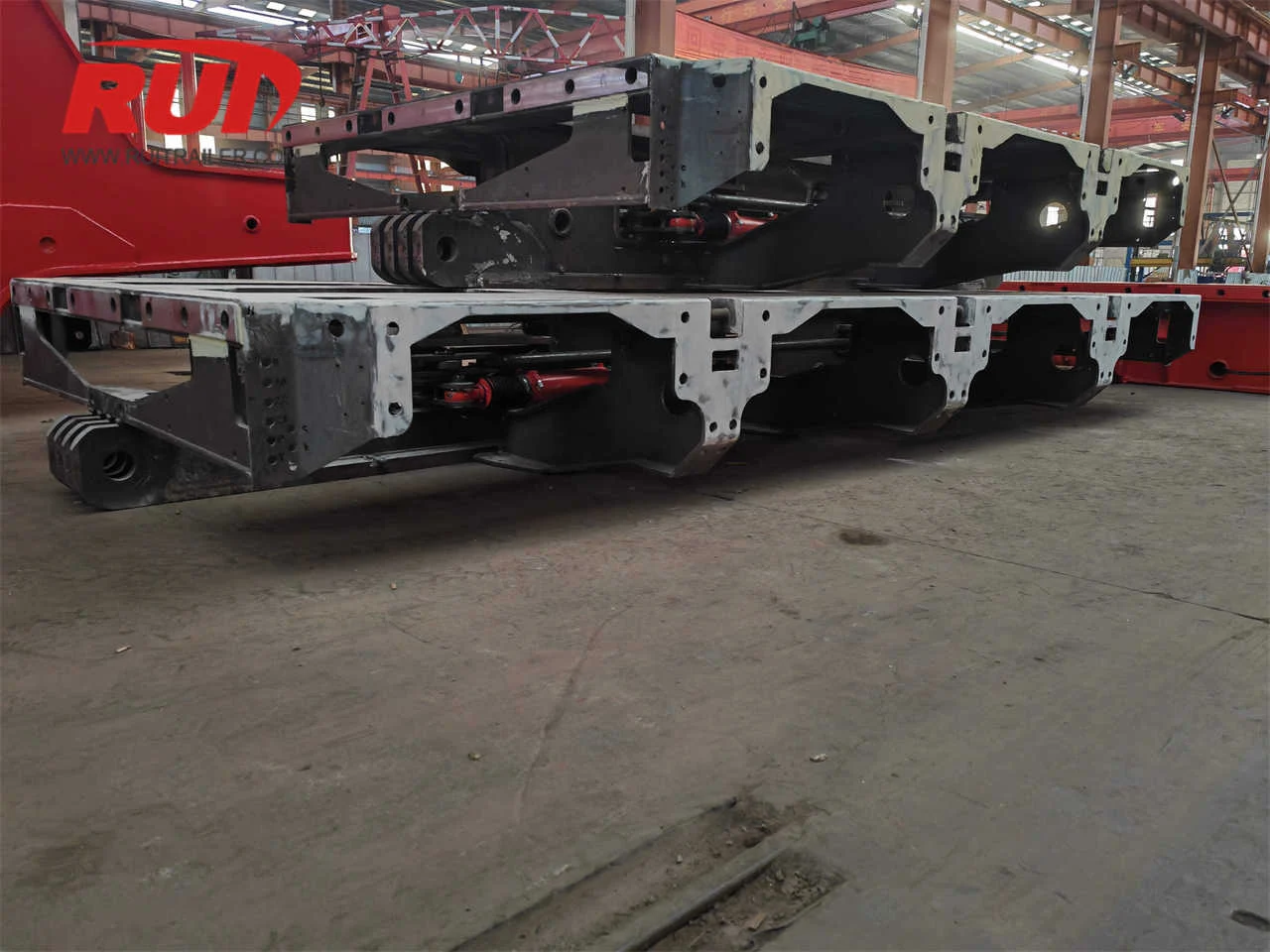

Metrology & Traceability
Verification via CMM or laser trackers. Every shipment includes comprehensive dimension logs, component tracking data, and anti-corrosion packaging.
Integrated CNC Machining Solutions for Hydraulic Modular Trailer Precision

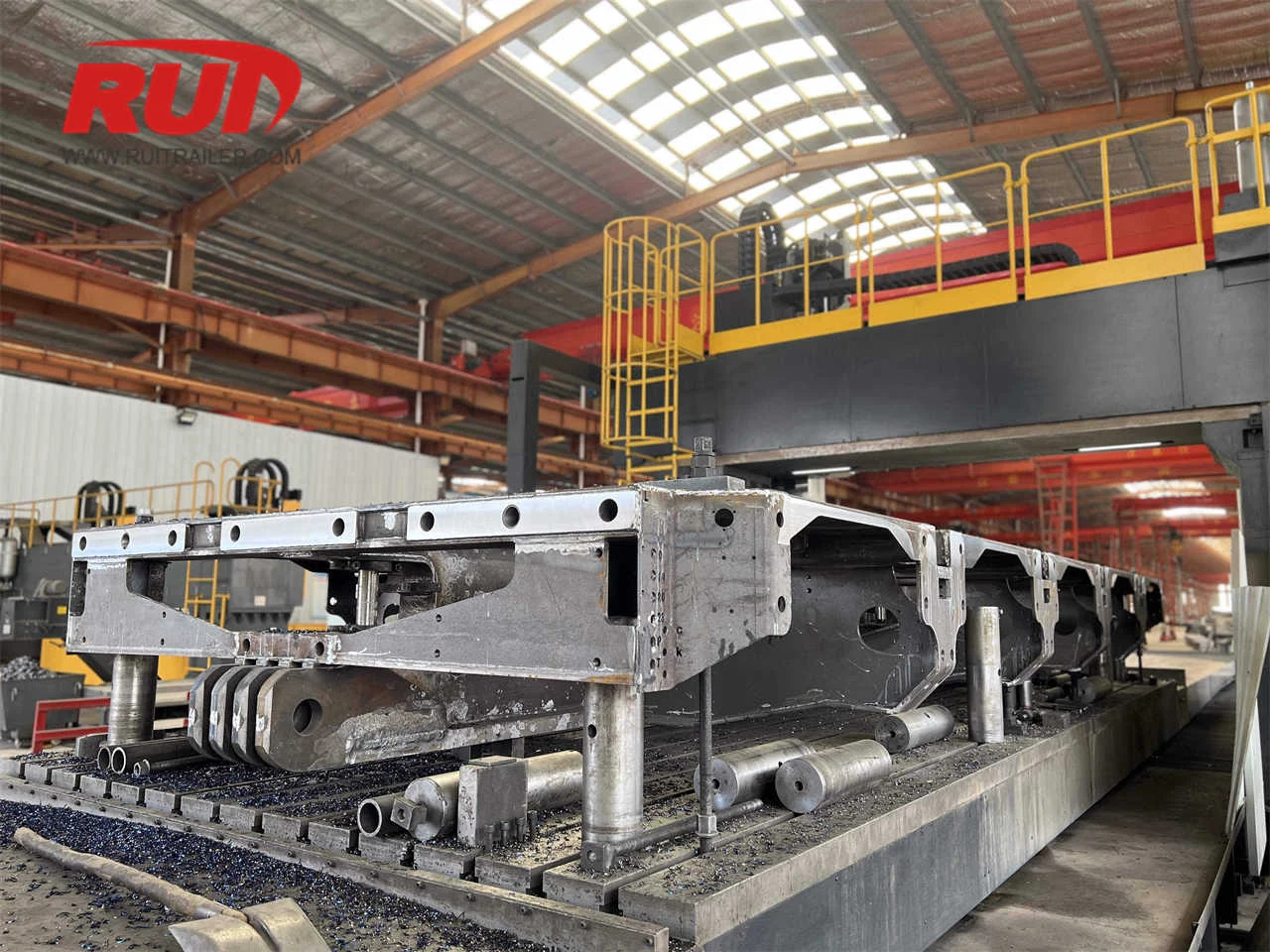

Locating Hole Array & Dowel Hole Precision
- • Unified CNC gantry milling coordinate systems guarantee exact hole patterns across long trailer frames.
- • Multi-stage drilling, expanding, and boring sequences prevent positional drift and control tight tolerances.
- • Automated edge-chamfering eliminates burrs, protecting suspension pins and bolts during final assembly.

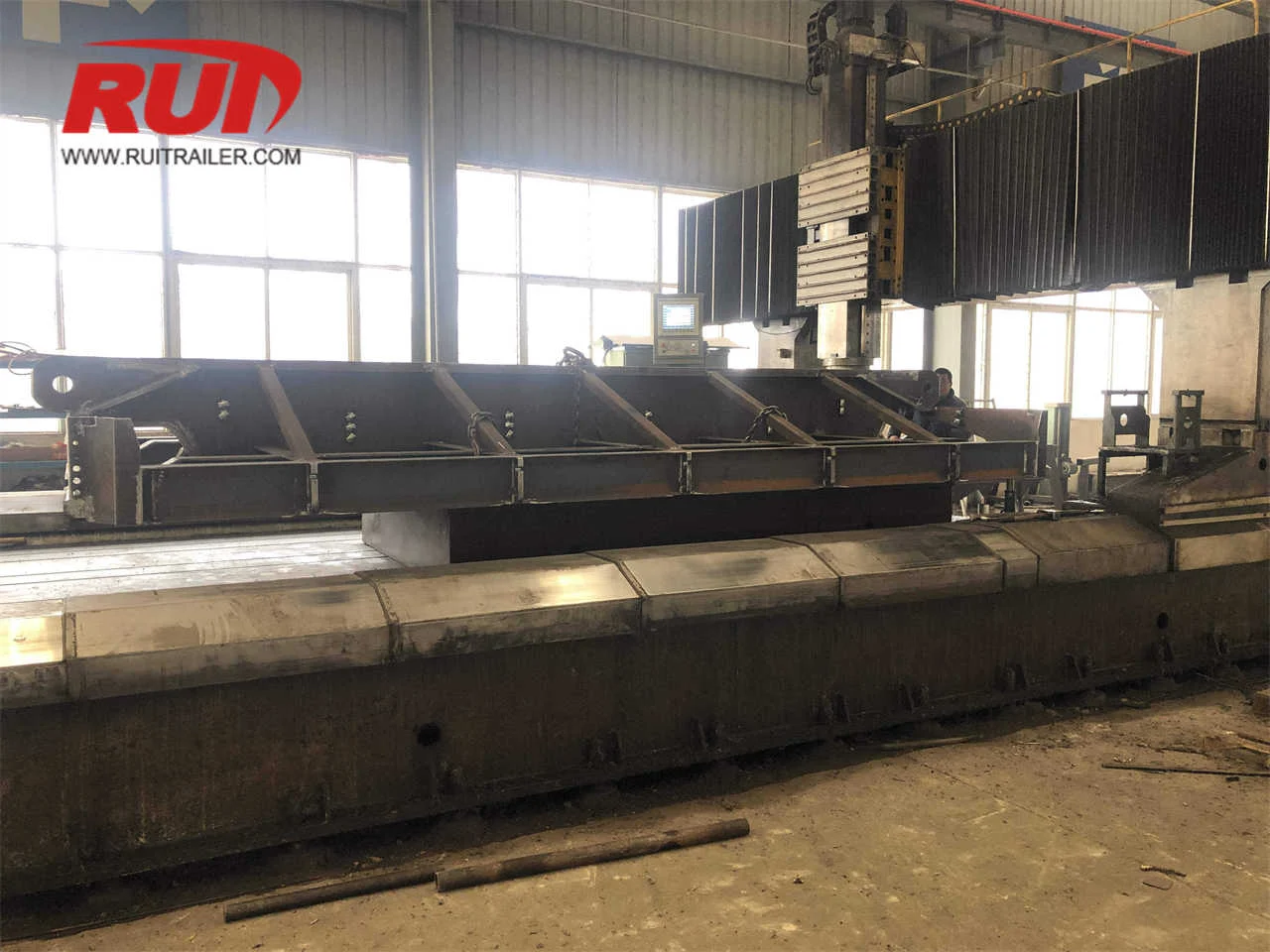

Boring Bracket Sleeves & Coaxiality Control
- • In-line probing probes and real-time feedback loops maintain concentricity on opposite steering arm hinges.
- • Thermal expansion and tool wear compensation algorithms keep large-diameter bores perfectly aligned.
- • Eliminates heavy mechanical binding in heavy-duty modular transporter suspension gear.
Flange Coupling & Mounting Surface Flatness
- • Optimized high-speed milling paths prevent structural distortion on heavy weldments.
- • Premium insert selections deliver excellent surface roughness, vital for high-pressure hydraulic valve blocks.
- • Ensures flush, gap-free modular trailer chassis connections under extreme wind blade transport loads.
Locating Hole Array & Dowel Hole Precision
- • Unified CNC gantry milling coordinate systems guarantee exact hole patterns across long trailer frames.
- • Multi-stage drilling, expanding, and boring sequences prevent positional drift and control tight tolerances.
- • Automated edge-chamfering eliminates burrs, protecting suspension pins and bolts during final assembly.
Boring Bracket Sleeves & Coaxiality Control
- • In-line probing probes and real-time feedback loops maintain concentricity on opposite steering arm hinges.
- • Thermal expansion and tool wear compensation algorithms keep large-diameter bores perfectly aligned.
- • Eliminates heavy mechanical binding in heavy-duty modular transporter suspension gear.
Flange Coupling & Mounting Surface Flatness
- • Optimized high-speed milling paths prevent structural distortion on heavy weldments.
- • Premium insert selections deliver excellent surface roughness, vital for high-pressure hydraulic valve blocks.
- • Ensures flush, gap-free modular trailer chassis connections under extreme wind blade transport loads.
Quality Assurance, Verification & Traceability for Heavy-Duty Frames
Advanced Metrology & Inspection
- •High-precision Coordinate Measuring Machine (CMM) verification
- •Laser tracking and portable measurement arms for large-scale trailer components
- •Laser-guided flatness and parallelism inspection for mounting surfaces
- •Surface roughness testing to ensure optimal sealing and interface fit
- •Raw material validation and certified weldment integrity mapping
Comprehensive Report Delivery
- •Full dimensional and GD&T compliance reports for every chassis section
- •Critical-to-Quality (CTQ) feature verification and hole-pattern tolerance mapping
- •First Article Inspection (FAI), in-process logs, and final sign-off documentation
Rigorous Technical Traceability
- •Unique part serialization for lifetime modular transport component tracking
- •Step-by-step machining process logs linked to specific operators and setups
- •Strict tool calibration management and CNC program version control
Precision CNC Gantry Milling Flatness Inspection Report
RUITRAILER Factory Quality Certificates and Compliance Wall

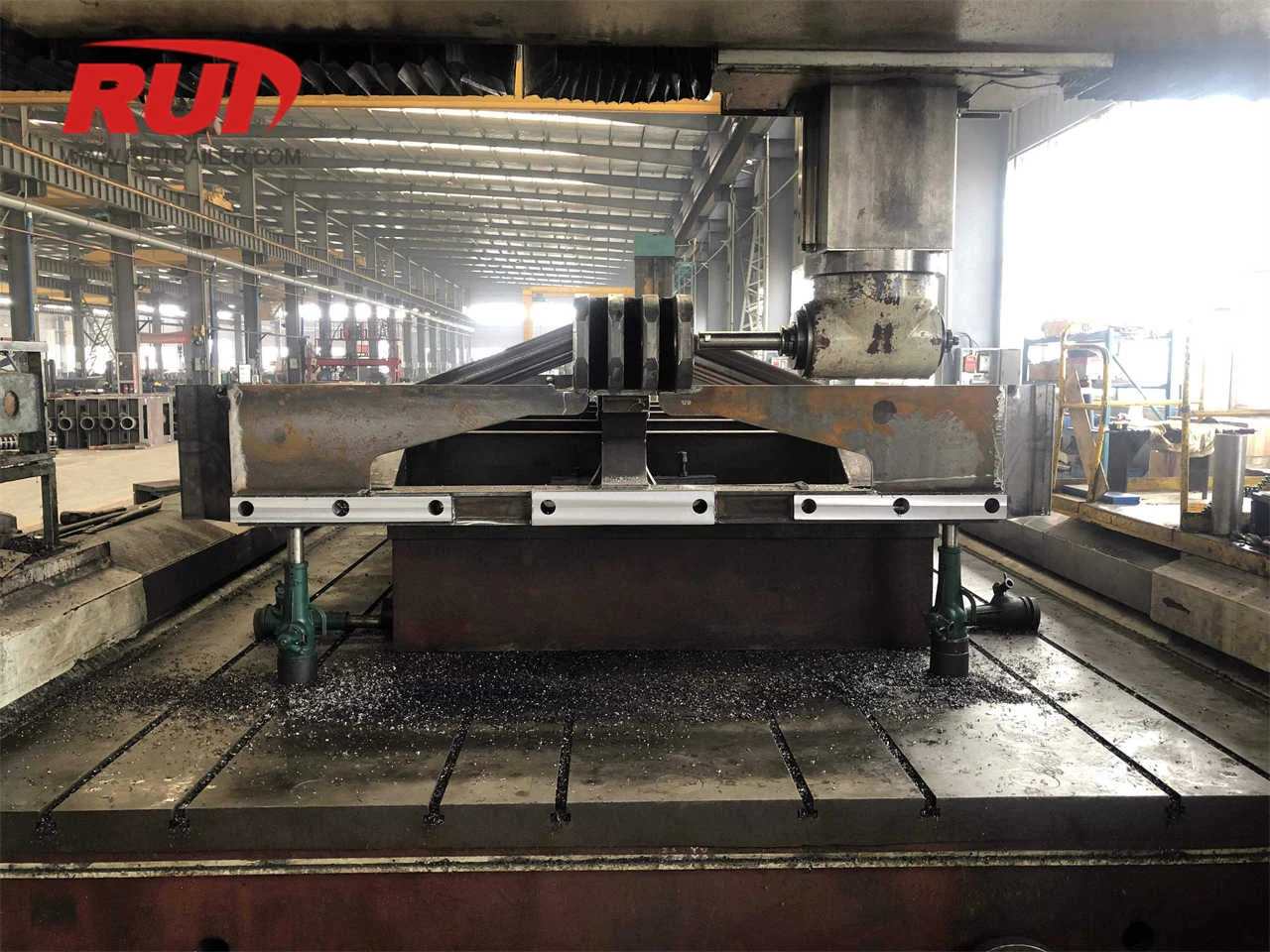

In-Process Laser Tracking for Hydraulic Modular Trailer Frame
GD&T Inspection Report for Precision Bored Journal Backings
Proven CNC Gantry Milling Cases for Heavy-Duty Transport Structure Fabrication
Heavy-Duty Hydraulic Modular Trailer Frame
- Manufacturing Challenges
- Severe post-weld thermal deformation on 12-meter high-strength steel chassis. Strict hole-pattern position tolerances required to prevent misalignment across multi-axle modules.
- RUITRAILER Precision Solutions
- Utilized single-clamping on a large-travel CNC gantry milling machine. Implemented a unified datum setup with localized stress-relief, followed by real-time probing and precision boring.
- Verified Results
- First-pass assembly yield increased by 25%. Inter-module connection rework dropped to zero, and overall structural lead time was shortened by 15%.
Multi-Axle Hydraulic Steering Beam
- Manufacturing Challenges
- Maintaining strict coaxiality across multiple steering cylinder mounting eyes and suspension arm bores. Cumulative tolerance build-up caused mechanical binding during field operation.
- RUITRAILER Precision Solutions
- Engineered custom heavy-duty fixtures to ensure rigid clamping. Executed dual-side face milling and inline line-boring within a single coordinate system to lock in geometry.
- Verified Results
- Achieved 100% interchangeability for batch components. Steering alignment verification showed zero binding, cutting factory testing cycles by 20%.
Inter-Module Coupling & Connection Plates
- Manufacturing Challenges
- High flatness requirements on massive mating flanges to withstand extreme bending moments during SPMT coupling. Out-of-flatness risked dangerous localized stress concentration.
- RUITRAILER Precision Solutions
- Programmed multi-pass optimized toolpaths utilizing specific high-feed face milling cutters. Continuous parameter adjustments compensated for structural deflection and temperature shifts.
- Verified Results
- Flange flatness controlled well within strict engineering tolerances. Coupling face contact rating exceeded 92%, substantially reducing manual onsite fitting.
*Note: To protect client confidentiality, specific project designations have been generalized. We can adapt these field-tested gantry milling workflows and quality control plans to match your exact part drawings.
Request a CNC Gantry Milling Quote: Information Needed & Project Process
Trailer Frame Machining Checklist
4-Step Custom Manufacturing Process
- 1
Technical DFM Review & Datum Alignment
RUITRAILER engineers evaluate your structural drawings to align machining datums, minimize weldment deformation risks, and optimize tool paths.
- 2
Commercial Quotation & Lead Time Commitment
Receive a transparent cost breakdown and fixed production timeline based on the gantry milling capacity required for your trailer frames.
- 3
Precision Gantry Milling & In-Process Control
We execute rough and fine machining under strict stress-control protocols, providing routine updates on flatness and hole pattern alignment.
- 4
Dimensional Inspection & Traceable Delivery
Components undergo rigorous final inspection with traceable dimensional data sheets and CMM reports before anti-rust packaging and dispatch.
Frequently Asked Questions
What size trailer frames can your CNC gantry milling machines handle?
How do you control welding deformation and guarantee assembly surface flatness?
How do you ensure hole pattern position tolerance and coaxiality? Do you provide CMM reports?
Can we request machining only for critical mating faces and bores to optimize costs?
How do you guarantee process consistency between prototypes and repeat fleet orders?
What factors dictate production lead times, and can urgent projects be expedited?
Achieve Verifiable Precision for Your
Hydraulic Modular Trailer Frames
Submit your heavy transporter component drawings and datum specifications. RUITRAILER engineers will deliver a optimized CNC gantry milling route, critical GD&T control strategies, and a comprehensive dimension inspection blueprint.
- ⏱ Technical feedback within 24–48 hours
- ⚙️ Custom machining fixtures for complex weldments
- 📋 Traceable CMM inspection and flatness data reports
