- High Capacity & Low Ground Pressure
- Multi-Directional Steering

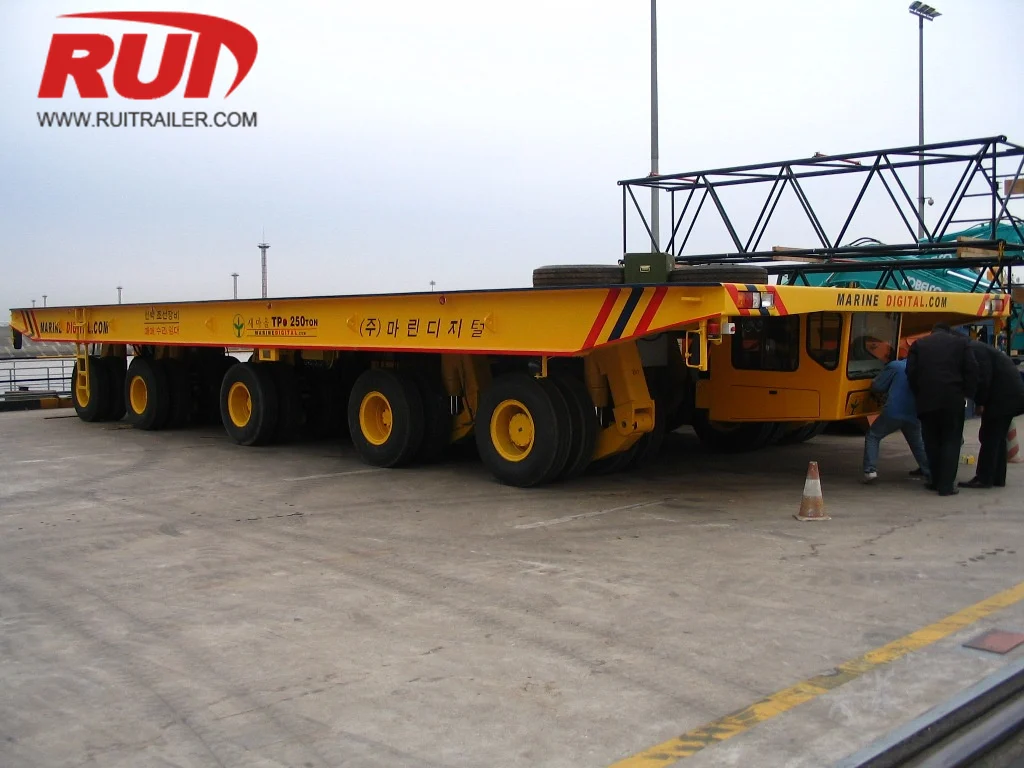

Modular Shipyard Vehicles
for Massive Payloads.

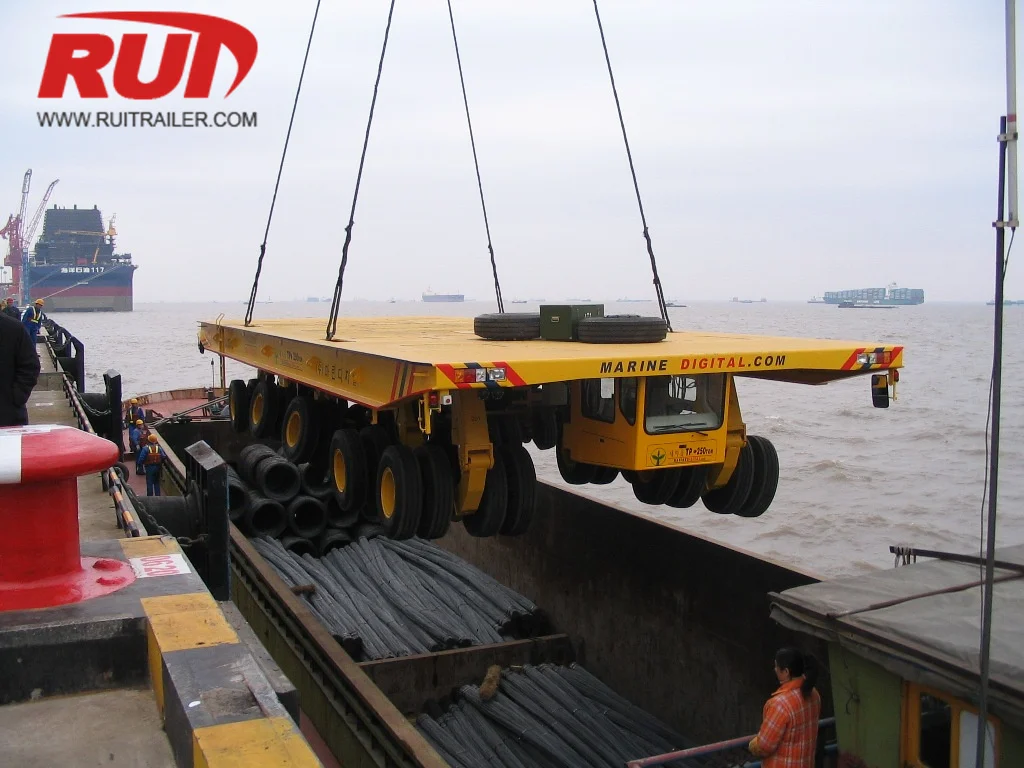

- Navigates Complex Terrain
- Fully Custom Configurations
Engineered for docks, shipbuilding, and repair facilities to efficiently transfer ship sections, modules, and heavy hull components.
50-1000T
Single Unit Capacity
Custom
Platform Dimensions
100%
Multi-Mode Steering
Electric/Diesel
Drive Options
Purpose-Built for Shipyard
Material Handling
RUITRAILER shipyard transporters are heavy-duty vehicles designed exclusively to move hull sections, deck modules, and massive steel structures safely from fabrication shops to drydocks and assembly areas.
Transforming "Heavy, Slow, and Difficult" Operations
Standard trailers struggle with shipyard logistics. Our transporters optimize your workflow by minimizing crane dependency, reducing transit risks, and accelerating the movement of oversized components across complex yard environments.
-
Increase Transport Efficiency
Move heavy loads swiftly between cutting, welding, and final assembly zones without waiting for gantry cranes.
-
Reduce Crane Dependency
Lower operational bottlenecks by handling ground-level module transfers independently.
-
Minimize Transport Risks
Ensure structural integrity of hull blocks with evenly distributed payload support and hydraulic leveling.
-
Ideal for Key Maritime Sectors
Perfectly suited for shipyards, ship repair facilities, and offshore manufacturing bases.
High
Payload Capacity
Low
Ground Pressure
Safe
Maneuverability
Custom
Chassis Design
Essential for Modern Shipbuilders

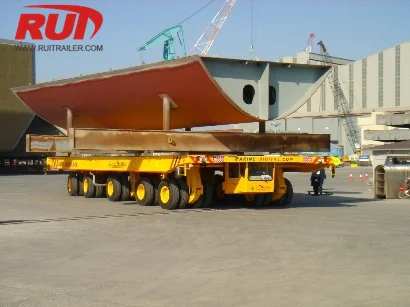

Hull Block Construction
Effortlessly relocate mega blocks and ring sections from workshops to slipways, keeping assembly schedules on track.
Heavy Module Transfer
Transport top-side modules, living quarters, and heavy steel structures across uneven yard surfaces with total stability.
Drydock Logistics
Navigate narrow drydock floors to position new equipment, engines, or fabricated sections directly under the vessel.
Built for Your Specific Yard Conditions
More Than Standard Platforms: We don't adapt standard industrial trailers; we engineer shipyard transporters from the ground up.
Unmatched Payload Handling: Designed to carry ultra-heavy, wide, and long components securely.
Omni-Directional Steering: Crab walk, carousel, and diagonal steering to negotiate the tightest yard layouts.
True Customization: We adapt dimensions, wheelsets, and drive systems based on your facility's road conditions.
Why Shipyards Need Dedicated Transporters
Stop relying on generic flatbeds. Our modular shipyard vehicles are engineered specifically for the extreme payloads, tight spaces, and delicate surfaces of modern shipbuilding.
Move Mega-Blocks Safely & Efficiently
RUITRAILER shipyard transporters handle ultra-heavy, over-dimensional components with ease. By replacing multiple crane lifts with a single ground transport solution, you drastically reduce handling risks and accelerate assembly schedules.
- Scalable payloads supporting hundreds to thousands of tons
- Hydraulic suspension maintains platform stability on uneven yard terrain
- Designed for hull sections, deck modules, and massive steel structures

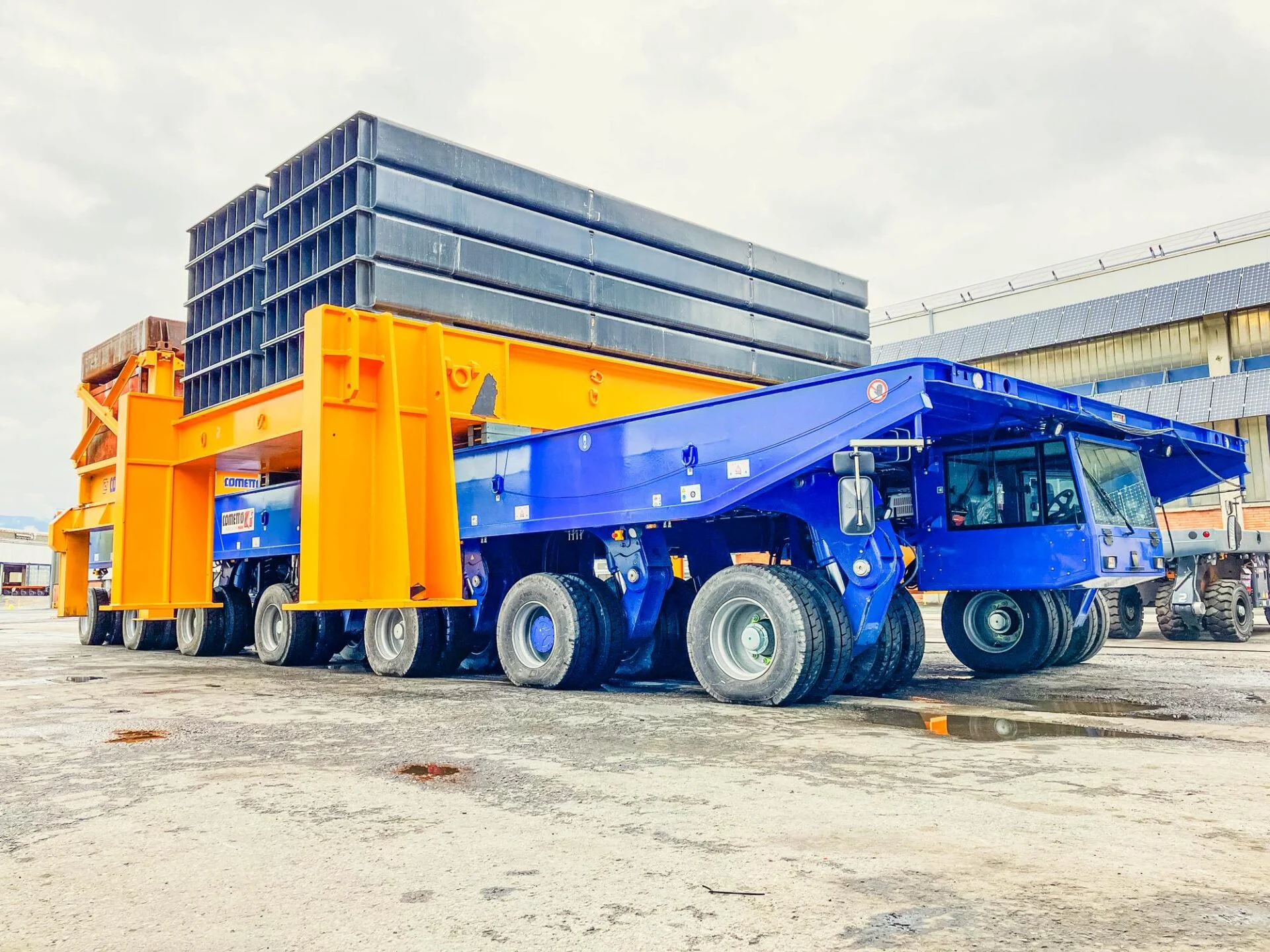

Floor-Protecting Low Ground Pressure
Optimized multi-axle wheel bogies evenly distribute massive loads. Transport heavy ship blocks without damaging workshop floors, dry dock bottoms, or yard pavement.

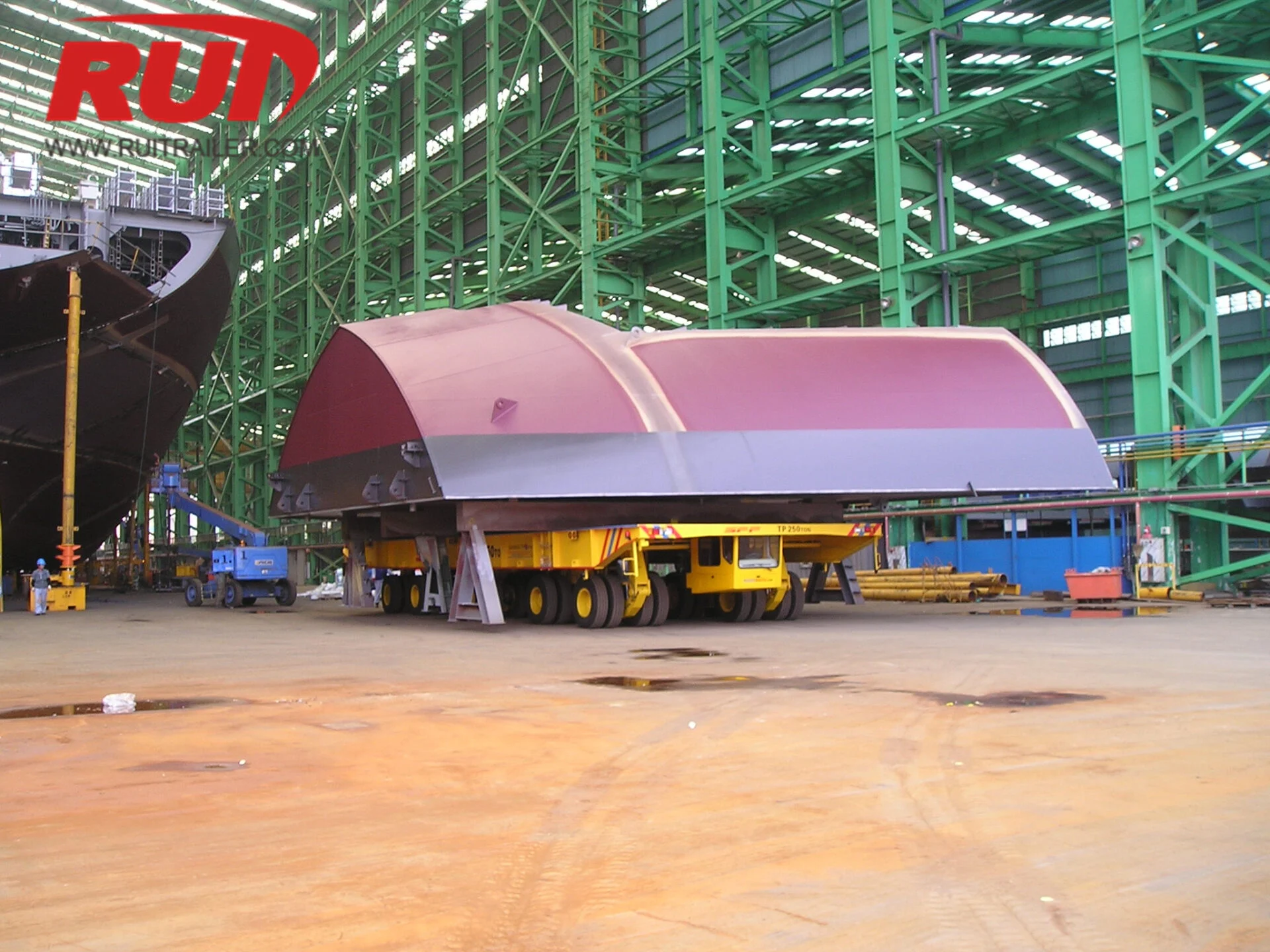

Agile Multi-Directional Steering
Maneuver massive structures through tight shipyard corridors. Support for normal, transverse, carousel (spin-in-place), and crab steering modes ensures precise positioning.
Tailored Chassis & Control Systems
We don't force standard models onto complex tasks. RUITRAILER customizes platform dimensions, drive types (diesel/electric), and cabin/remote controls to match your specific workflow.
Why Specialized Transporters Outperform Standard Options
| Capability | Shipyard Transporter | Standard Trailer / Forklift |
|---|---|---|
| Ground Pressure | Low (Distributed Load) | High (Concentrated Load) |
| Maneuverability | Multi-Mode / Omni-Directional | Limited Turning Radius |
| Load Leveling | Active Hydraulic Suspension | Rigid / Passive |
| Platform Sizing | Custom Built for Ship Blocks | Standard Road Dimensions |
| Harsh Environments | Corrosion & Salt Mist Resistant | Standard Commercial Spec |
Purpose-Built for the Marine Industry
We design around your shipyard's specific operational realities.
Ready to Upgrade Your Shipyard Logistics?
Share your payload requirements and yard conditions with us. We'll provide a customized transport solution designed to maximize efficiency.

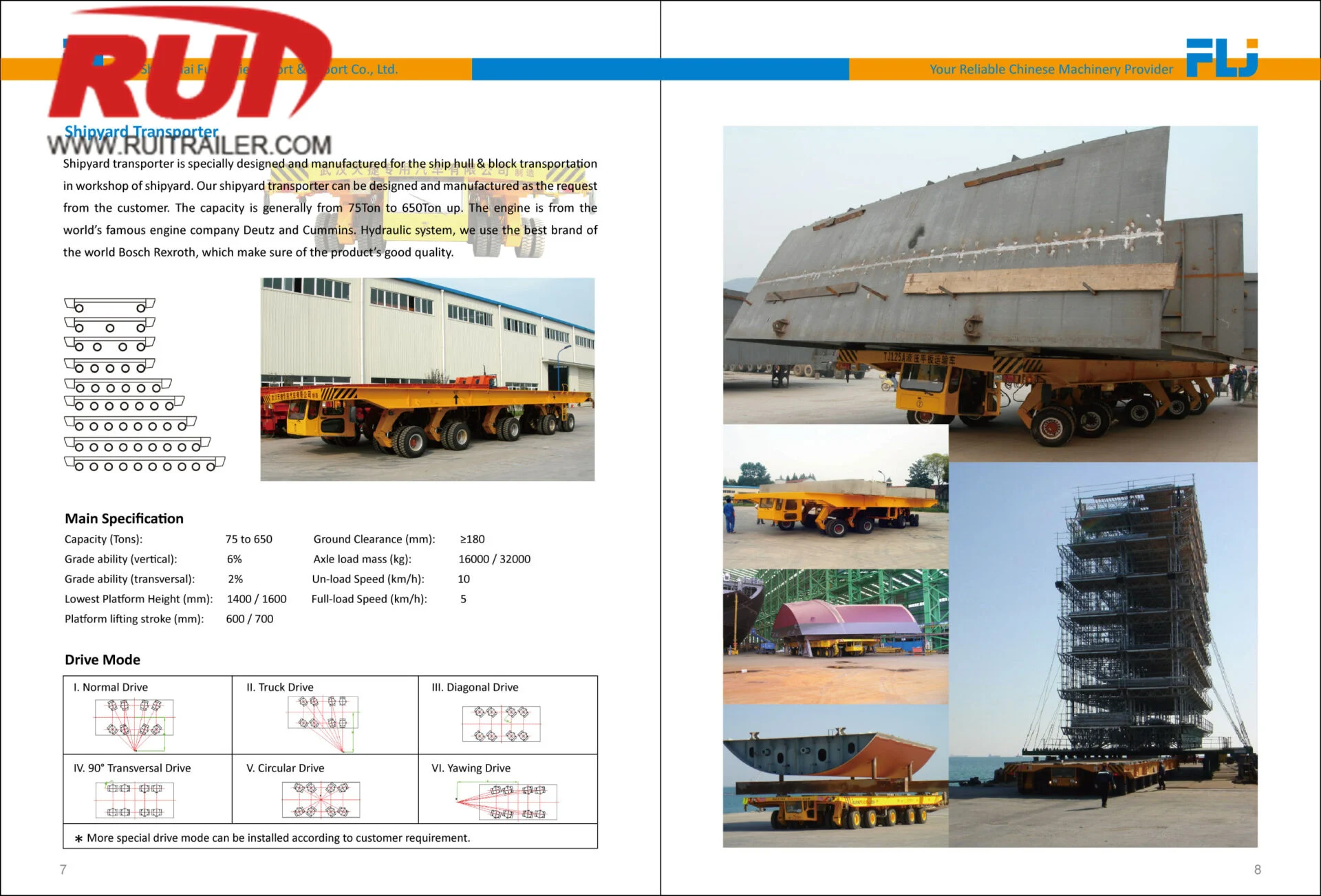

Structure & Working Principle
of Shipyard Transporters
Engineered for massive hull blocks and offshore modules. RUITRAILER combinations rely on specialized load-bearing, power, and steering systems to ensure stable and precise transport.
Heavy-Duty Platform
Designed to support massive ship sections, the platform features a high-tensile steel frame. Modules can be coupled longitudinally or laterally to accommodate oversized loads.
- Rigid steel structure for even load distribution
- Hydraulic suspension for active deck leveling
- Configurable dimensions based on shipyard needs
Power Unit Options
The Power Pack Unit (PPU) supplies hydraulic flow and electrical control to the transporter. We offer diesel, fully electric, or hybrid systems to meet varying emission requirements.
- High-torque hydraulic drive motors
- Zero-emission electric options for indoor halls
- Easy-access maintenance layout

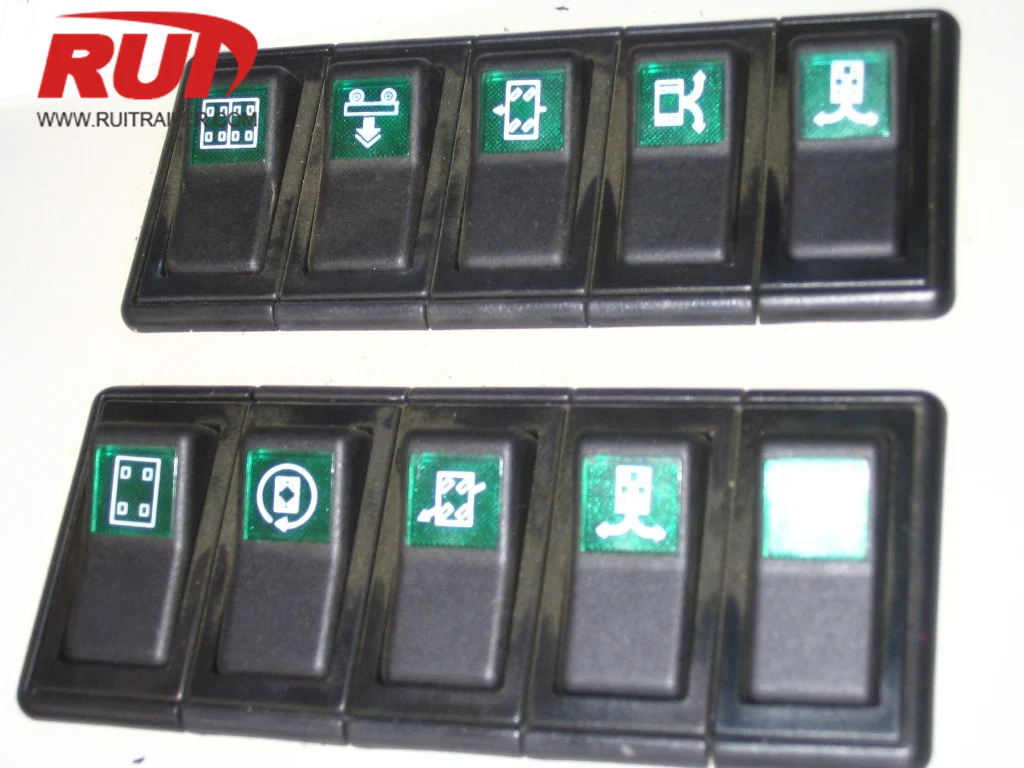

Multi-Mode Steering
Precision maneuverability is critical in tight shipyards. Electronic multi-directional steering allows transverse, diagonal, and carousel movements for exact module positioning.
- Electronic synchronization of all axle lines
- Up to 130° or continuous steering angles
- Controlled via wireless remote or cabin
How RUITRAILER Transporters Maintain Stability
Moving thousands of tons requires seamless coordination. Our shipyard transporters utilize a closed-loop hydraulic suspension system that automatically compensates for uneven ground, preventing torsion in sensitive ship structures.
Load Equalization

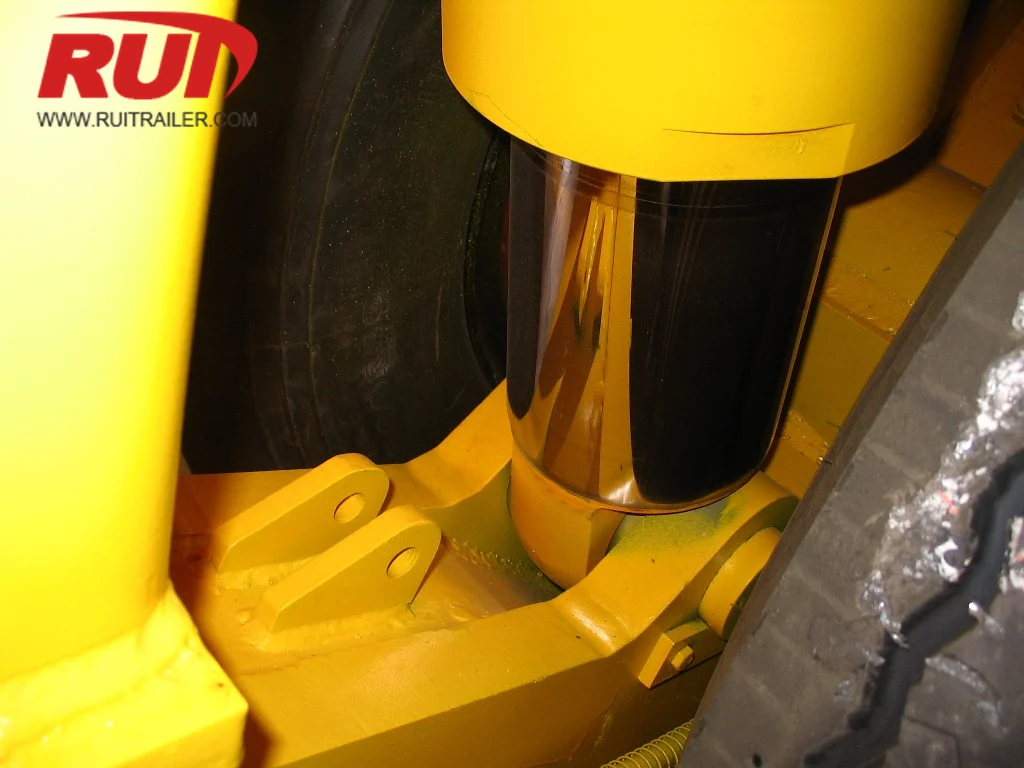

Hydraulic cylinders on each wheel bogie adapt to terrain changes, keeping ground pressure constant and protecting shipyard pavements.
Center of Gravity Management
Three-point or four-point hydraulic support groups ensure the cargo's center of gravity remains secure, even on ramps.
Synchronized Movement
When multiple modules are coupled, the central PLC coordinates drive and steering commands as a single cohesive unit.
Self-Loading Capability
The platform can raise and lower hydraulically, allowing it to lift ship blocks directly off support trestles without crane assistance.
Comprehensive Safety Architecture
Shipyard transportation involves high risks. We integrate advanced safety systems to protect operators, cargo, and infrastructure.
Hose Burst Protection
Safety valves on suspension cylinders lock the platform in place if a hydraulic line fails.
Emergency Stops
Accessible E-stops on the remote control and chassis ensure immediate system halt.
Center of Gravity Monitoring
Real-time load distribution feedback alerts operators to potential tipping hazards.
Visual & Acoustic Alarms
Warning lights and travel alarms keep personnel aware during active transport moves.
Custom
Platform Dimensions
Multi
Steering Programs
600mm
Typical Suspension Stroke
Scalable
Coupling Capability
Shipyard Transporter Specifications
Detailed parameters for RUITRAILER modular transport vehicles. Built for high-capacity loads, dimensional flexibility, and reliable shipyard performance.
Configurable for Heavy Maritime Logistics
RUITRAILER shipyard transporters are engineered to handle massive hull blocks and offshore modules. Below are our standard technical parameters, which can be fully tailored to your yard's specific infrastructure and load profiles.
- Scalable payload capacities for varying block weights
- Low floor load design to protect drydock surfaces
- Multi-mode steering for navigating tight assembly areas
- Corrosion-resistant components for marine environments
Key Parameters — RUITRAILER Heavy Duty Transporters
| Category | Parameter | Standard Value / Range | Customization Notes |
|---|---|---|---|
| Load Capacity | Payload per Axle Line | 30 t – 80 t | Based on tire choice and axle count |
| Max Combined System Load | Up to 20,000 t | Using multi-module synchronization | |
| Platform Load Distribution | Hydraulic leveling compensation | Maintains balance over uneven ground | |
| Overload Safety Factor | 1.25× rated capacity | Compliant with heavy transport standards | |
| Dimensions | Platform Width (Single Module) | 2,430 mm / 3,000 mm | Custom widths available for wide blocks |
| Axle Spacing | 1,400 mm / 1,500 mm | Optimized for low ground pressure | |
| Platform Height (Min / Max) | 1,150 mm / 1,500 mm | ±350 mm hydraulic lift stroke | |
| Ground Clearance | Adjustable (300 mm avg) | Suitable for yard ramps and rails | |
| Turning Radius | 0 m (Carousel Mode) | Supports transverse and diagonal moves | |
| Performance | Max Speed (Empty) | 3.0 km/h - 5.0 km/h | Varies by power pack selection |
| Max Speed (Fully Loaded) | 0.5 km/h - 1.5 km/h | Optimized for safety and control | |
| Gradeability (Loaded) | Up to 8% | Depending on ground friction and load | |
| Drive & Steering | Power Source | Diesel / Electric / Hybrid | Custom Power Pack Units (PPU) |
| Propulsion System | Hydrostatic Drive | Smooth acceleration and braking | |
| Steering Type | Electronic / Hydraulic All-Wheel | Independent wheel bogie control | |
| Suspension | Hydraulic Pendulum Axles | Protects cargo from ground impact | |

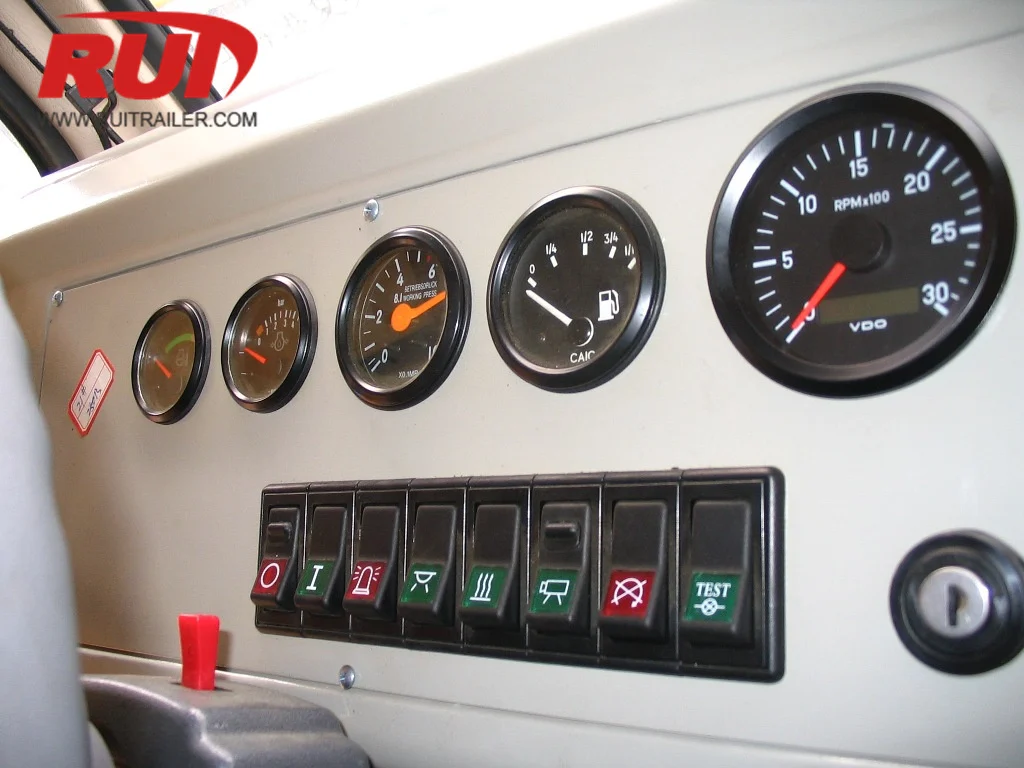

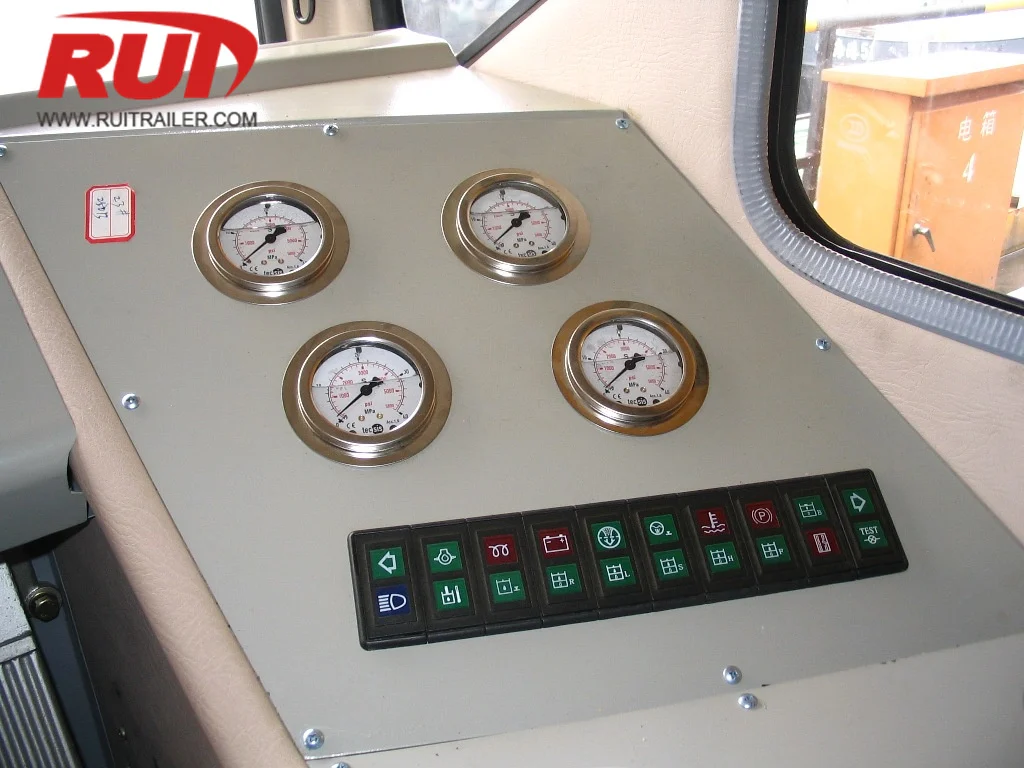

| Control & Safety | Operation Mode | Wireless Remote / Cabin | Ergonomic remote standard |
| Control Architecture | Microprocessor / PLC | Reliable in harsh environments | |
| Safety Systems | E-stop, Anti-collision, Alarm | Integrated load monitoring | |
| Braking System | Fail-safe spring-applied hydraulic | Immediate hold on slopes |
Expandable Modular Frame
Combine units longitudinally or laterally.

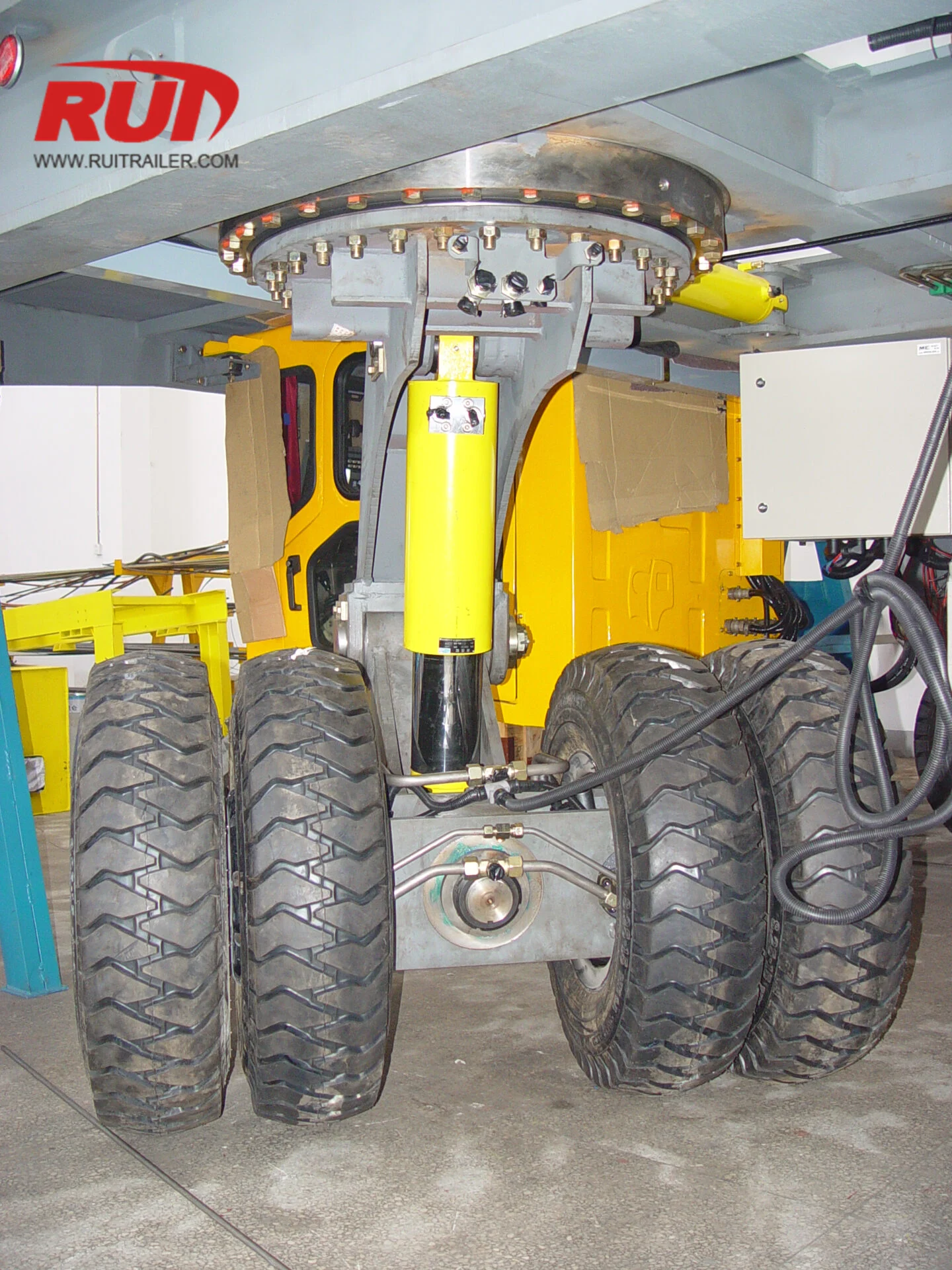

Heavy-Duty Pendulum Axles
Ensures equal load distribution on uneven yards.

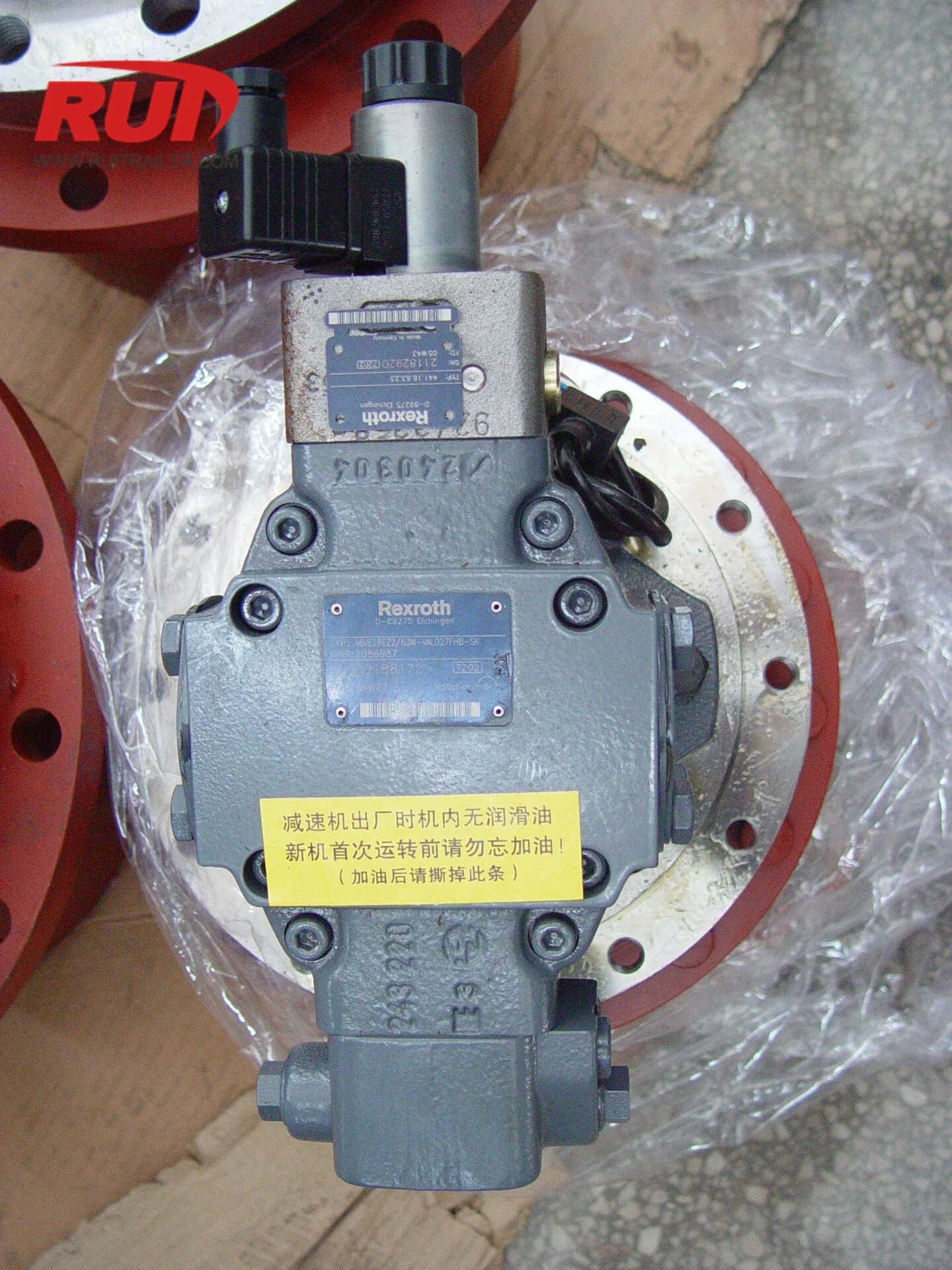

Hydrostatic Drive Units
Smooth power delivery for precise positioning.
* Specifications listed are general reference ranges. RUITRAILER customizes dimensions, payload capacities, and power systems based on your specific shipyard requirements. Support custom configurations upon request.
Shipyard Transportation Applications
Discover how RUITRAILER shipyard transporters handle heavy hull segments, massive modules, and complex logistics in confined drydocks.

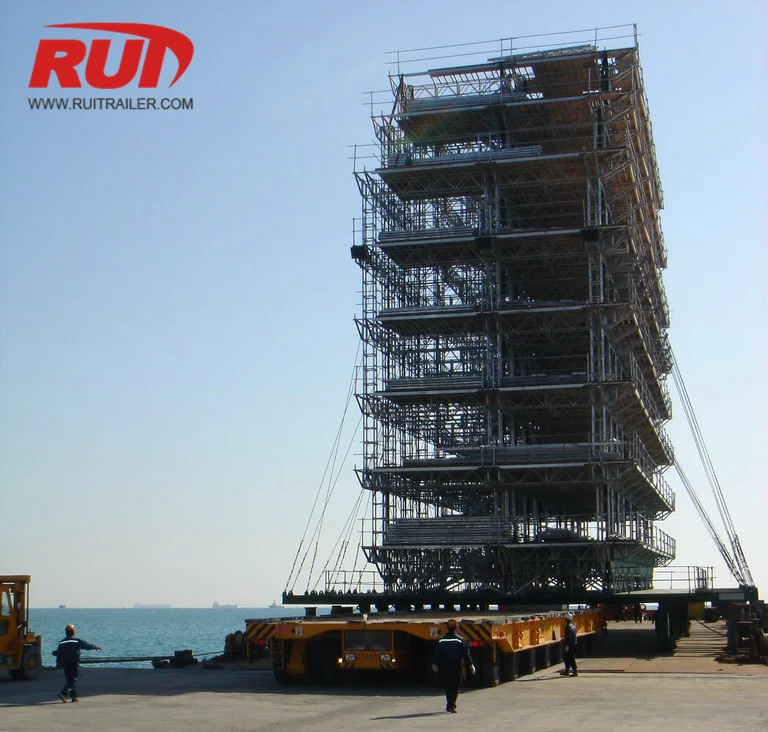

Hull Segment Transfer
Efficiently relocate massive hull sections from fabrication shops to final assembly areas, minimizing crane dependency and ensuring precise positioning.
Large Deck Modules
Transport multi-thousand-ton deck structures and pre-outfitted blocks seamlessly with synchronized multi-axle suspension, keeping heavy loads level.
Drydock Maneuvering
Navigate tight shipyard corridors, narrow gates, and confined drydock areas easily using multi-directional steering and crab-walk capabilities.
Engineered for Complex Shipyard Workflows
Shipbuilding
Move heavy steel blocks from welding lines to final slipways.
Ship Repairing
Transport massive engines, propellers, and replacement parts safely.
Offshore Manufacturing
Handle oversized offshore platform components and jackets.
Internal Logistics
Streamline intralogistics to keep assembly lines running smoothly.
Designed to Match Your Heavy Lifting Tasks
- Protects shipyard paving with optimized, low ground-bearing pressure.
- Eliminates risky tandem crane lifts for heavy-duty ship modules.
- Couples mechanically or electronically to form mega-transporter platforms.
- Customized decks available to support unique marine structures.
How to Choose the Right Shipyard Transporter
for Your Operation
Evaluating a heavy-duty shipyard transporter requires more than just knowing your payload. Walk through these key parameters to configure a customized transport solution with RUITRAILER.
Payload Capacity
Determine the maximum weight of ship blocks or modules. We design for scalable capacities.
- Light: Up to 150t
- Medium: 150–400t
- Heavy: 400–1,000t+
Ground Conditions
Analyze floor load limits and surface types to select appropriate wheel groups and suspension.
- Indoor workshops
- Semi-open dry docks
- Outdoor paved yards
Transport Route
Identify route geometry, ramp angles, and narrow passages to dictate steering needs.
- Straight long-haul
- Tight maneuvering
- Frequent inclines
Operation Mode
Decide how operators will interact with the vehicle for maximum safety and visibility.
- Wireless remote
- Enclosed cabin
- Dual control setup
Power Train
Match the propulsion system to your shipyard's emission standards and operational shifts.
- Electric priority
- Heavy-duty diesel
- Hybrid solutions
Customization Options
We don't force standard models onto complex projects. Review our typical customization parameters designed for shipyard logistics.
| Component | Standard Configuration | Custom Upgrade Available |
|---|---|---|
| Platform Size | Standard lengths up to 15m | Extended formats, variable widths |
| Wheel Groups | Solid rubber tires | Polyurethane, increased axle counts |
| Steering Angle | Conventional hydraulic steering | Multi-directional, crab walk capable |
| Safety Add-ons | E-stops, warning lights | Anti-collision sensors, load monitoring |
Reduce procurement risks by partnering with experts. Provide your shipyard layout and payload requirements, and we'll engineer the exact transporter for the job.
Uncompromising Safety for Heavy Shipyard Transport
RUITRAILER shipyard transporters are equipped with advanced safety systems to protect your cargo, personnel, and equipment during critical heavy-duty material handling operations.
Proactive Risk Management on Every Move
-
Overload Detection & Warning
Continuous payload monitoring immediately flags excessive weight distribution, preventing structural damage to the transporter and the hull sections.
-
Emergency Stop System (E-Stop)
Strategically placed emergency stops on the vehicle and remote controls allow operators to instantly halt operations in case of unforeseen hazards.
-
Dynamic Center of Gravity Control
Hydraulic suspension systems actively manage stability, automatically adjusting to uneven shipyard terrain to prevent tipping of oversized loads.
-
Low-Speed Limit & Anti-Collision
Built-in speed restrictions ensure controlled movements in tight shipyard spaces, minimizing collision risks during delicate module positioning.
100%
Real-time Load Monitoring
E-Stop System Response Time
Auto
Hydraulic Platform Leveling
Full
Compliance with Industry Safety Codes
Designed for Secure Shipyard Logistics
Hydraulic Compensation
Our advanced hydraulic systems maintain platform levelness across varying gradients, essential for safely moving top-heavy ship blocks.
Fail-Safe Braking
Robust braking mechanisms automatically engage upon power loss or remote control signal drop, ensuring the heavy transporter never rolls uncontrolled.
Standardized Operation
We provide comprehensive operator training and clear SOPs, ensuring your team can confidently manage complex heavy transport tasks.
Meeting Global Industrial Safety Standards
ISO Quality
Certified Manufacturing
CCC Compliant
China Standards
Rigorous Testing
Factory Acceptance
Site Specific
Custom Safety Protocols
From Custom Design to Shipyard Commissioning
RUITRAILER employs a closed-loop execution process. We ensure your custom shipyard transporter is built, tested, and delivered to perfectly match your site's heavy handling requirements.
Site Survey & Engineering Design
We begin by analyzing your payload dimensions, yard terrain, and transport routes. Our engineering team then designs a custom heavy transport solution tailored to your shipyard's exact workflow.
- Detailed route & ground load analysis
- Customized platform and steering configurations
- Comprehensive technical proposal
Precision Manufacturing
Upon design approval, manufacturing begins in our ISO-certified facility. We utilize high-yield strength steel and precise welding processes to ensure maximum structural integrity for extreme shipyard loads.
- High-yield steel chassis fabrication
- Integration of reliable hydraulic and drive systems
- Strict ISO 9001 quality control protocols
Rigorous Factory Testing
Before shipping, every custom transporter undergoes comprehensive functional and load testing. We verify steering synchronization, hydraulic stability, and emergency systems to guarantee operational safety.
- Overload capability testing
- Multi-mode steering verification
- Control and safety system audits
Global Shipping & Logistics
We handle the complex logistics of transporting heavy equipment globally. Modules are securely packaged with marine-grade anti-corrosion protection to ensure they arrive at your facility in pristine condition.
- Marine-grade anti-corrosion packaging
- Complete export documentation
- Coordinated door-to-port delivery
On-Site Assembly & Training
Our technical team arrives at your shipyard to oversee assembly, final commissioning, and real-world load testing. We provide extensive training to ensure your operators confidently manage the new transporter.
- Expert on-site assembly supervision
- Comprehensive operator and maintenance training
- Ongoing technical support and parts availability
15+
Years of Engineering
500+
Transporters Delivered
30+
Global Markets Reached
100%
Factory Load Tested
Proven Applications in Global Shipyards
See how RUITRAILER shipyard transporters solve real-world heavy lifting challenges, optimizing workflow in shipbuilding and repair facilities.

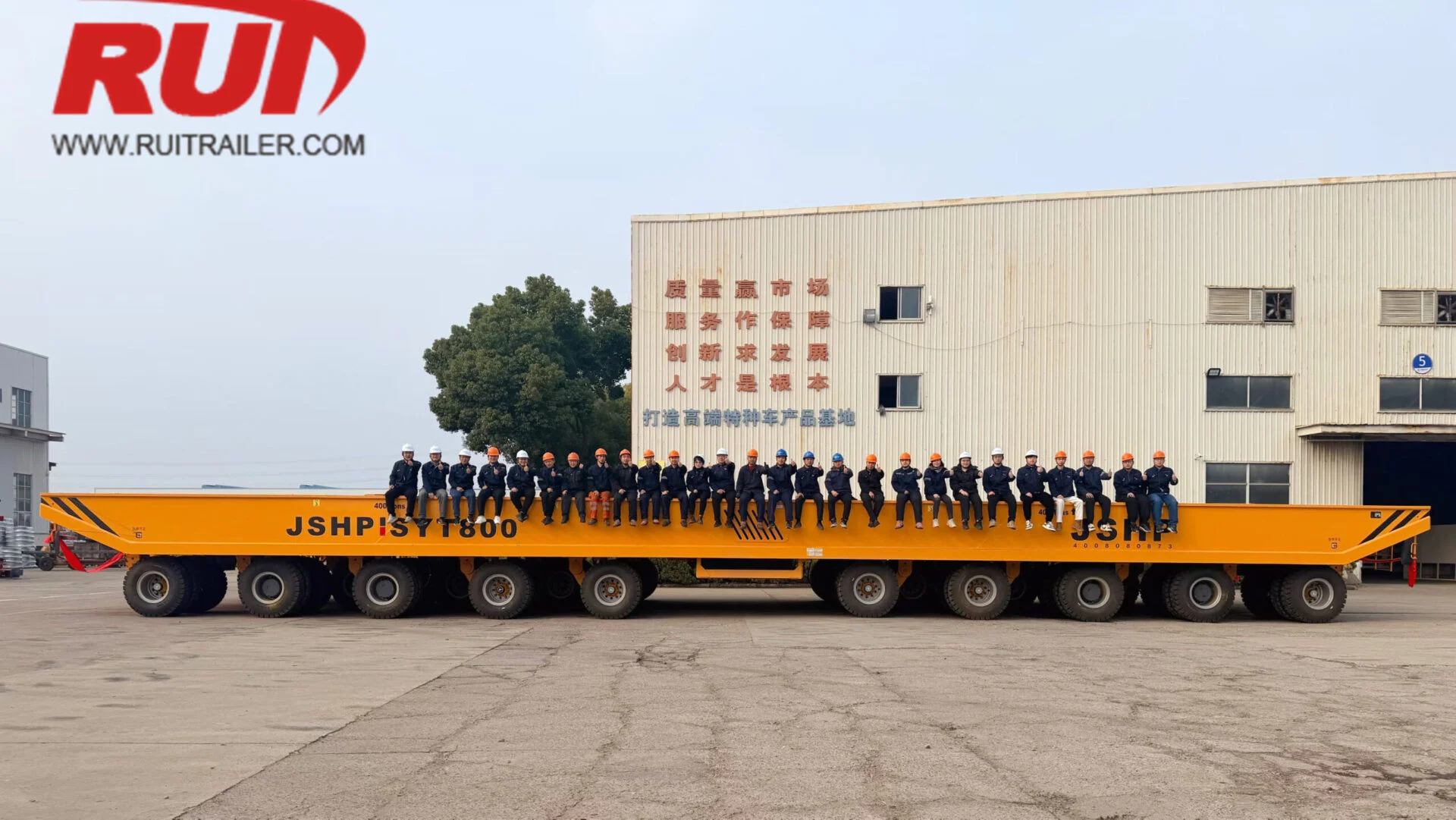

Large Hull Block Transfer
Moved heavy hull sections from fabrication to assembly area, reducing crane dependency and accelerating the build cycle.
800T
Payload Handled
30%
Efficiency Gain
Offshore Module Positioning
Navigated massive deck modules through narrow shipyard pathways using multi-directional steering for pinpoint accuracy.
±5mm
Positioning Accuracy
Zero
Ground Damage
Repair Yard Relocation
Safely transported massive engine components and propellers during vessel refits within confined dry dock spaces.
Complex
Route Navigation
100%
Safety Record

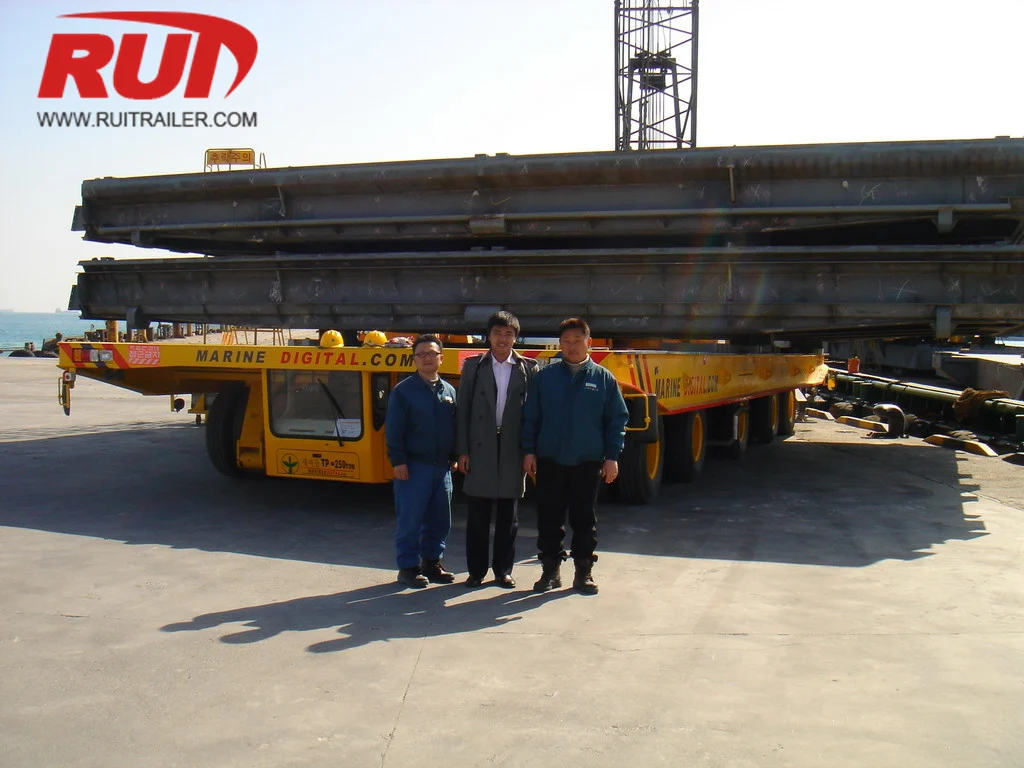

Naval Shipyard Logistics
Provided customized heavy transporters for a military contractor, meeting stringent compliance and operational stability standards.
Custom
Chassis Design
24/7
Operation Ready
Delivering Reliability Where It Matters
99%
Operational Uptime
300+
Units Delivered
20+
Years Industry Focus
40+
Shipyards Served
"Integrating RUITRAILER transporters changed how we handle mega-blocks. The equipment's low ground pressure and precise steering reduced our transfer times significantly while eliminating damage to our yard surfaces."
Project Manager
Leading Commercial Shipyard
Frequently Asked Questions
Common queries regarding shipyard transporter configuration, payload capabilities, and operational safety, answered.
400t+
Custom Payload per Unit
Multi
Directional Steering
IP67
Marine Environment Ready
Global
On-Site Commissioning
1 How does a shipyard transporter differ from a standard heavy flatbed?
2 What is the maximum payload capacity available?
3 Can you customize platform dimensions and steering modes?
4 Are they suitable for harsh outdoor marine environments?
5 What safety systems are integrated to protect heavy loads?
6 Do you provide testing and operator training before handover?
Need a Custom Transport Solution?
Share your payload requirements and dockyard layout with our engineers.
Ready to Optimize Your Shipyard Transport? Let's Talk.
Share your load requirements, dimensions, and route conditions. Our engineering team will match you with the ideal shipyard transporter solution within 24 hours.
Request a Custom Solution
Why Partner With RUITRAILER?
- ✓
Direct Manufacturer Value
Skip the middlemen. Get competitive pricing and direct technical communication from our factory.
- ✓
Tailored Transport Configurations
We adapt dimensions, steering modes, and power systems to fit your specific shipyard layout.
- ✓
Proven Heavy-Duty Performance
Our transporters are trusted in shipyards globally for their stability and low ground pressure design.
- ✓
End-to-End Project Support
From initial layout assessment to final on-site training and long-term spare parts supply.
Email Engineering
info@heavydutymodule.com
Direct Sales Line
+86 13906107837
Consultation Time
Within 24 Hours
Strictly Confidential. RUITRAILER protects your project details. All specifications are reviewed directly by our specialized heavy transport engineers.
English
German
Turkish
French
Portuguese
Russian
Arabic
Hindi
Vietnamese
Chinese
Spanish
