Low Bed Multi Axle Trailer Guide Heavy Duty Specs and Uses

Are you facing the challenge of transporting oversized cargo that exceeds standard weight limits?

Investing in the right low bed multi axle trailer is the difference between a profitable project and a logistical nightmare.

As a veteran in the heavy haulage industry, I know that moving 100-ton transformers or mining excavators requires more than just extra wheels—it requires precision engineering.

In this guide, you’re going to discover exactly how to select the ultimate hydraulic multi axle trailer for your fleet.

We will cut through the noise to cover steering mechanisms, load distribution, and the critical specs that actually matter for oversized cargo transport.

Let’s get your heavy transport moving.

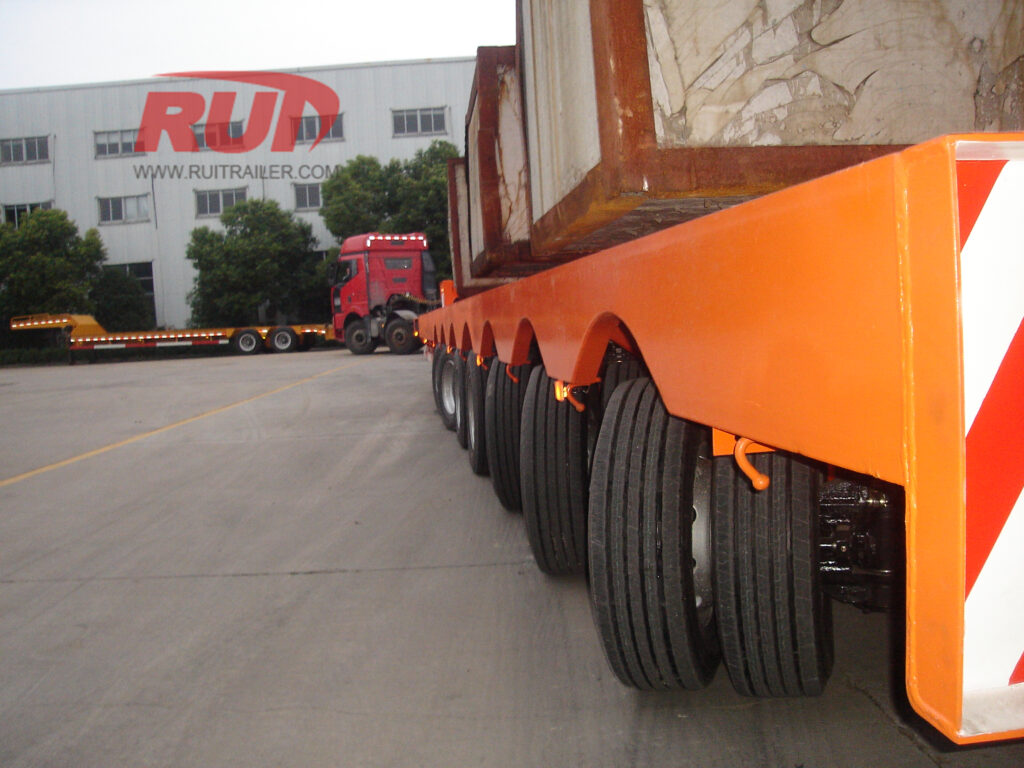

What Sets Multi-Axle Low Bed Trailers Apart?

When standard transport solutions fail to meet the demands of \”special projects,\” our low bed multi axle trailer steps in. We engineer these heavy-haul giants specifically for extreme loads that require precision, stability, and massive weight distribution. Unlike conventional semi-trailers, our multi-axle configurations—ranging from 8 to 12 axles—are designed to conquer the logistical challenges of transporting transformers, industrial machinery, and aerospace components.

Defining the Multi-Axle Advantage

The core advantage of a multi line axle trailer lies in its ability to legally and safely distribute immense weight. By utilizing a high axle count, we significantly reduce the ground pressure per tire. This is critical for protecting road infrastructure and complying with strict heavy transport regulations. Our designs feature robust axle capacities of 12, 14, or 16 tons, ensuring that even the heaviest concentrated loads are supported without compromising the structural integrity of the trailer.

Massive Payload Capacity & Stability

We build these trailers for the heaviest jobs. With a high capacity lowboy trailer design, we offer payload capabilities exceeding 130 tons. To manage this weight safely, we focus on two critical engineering factors:

• Superior Weight Distribution: With options for hydraulic steering and air suspension (35-90 ton capacity), the trailer adapts to uneven terrain, keeping the load balanced across all axles.
• Low Center of Gravity: The platform height is adjustable between 850 mm and 1,150 mm. This low deck height is essential for maintaining stability when hauling tall, top-heavy cargo like wind turbine parts or construction equipment.

By combining a hydraulic multi axle trailer system with high-strength steel construction, we ensure that your heavy haulage operations are safe, stable, and ready for any route.

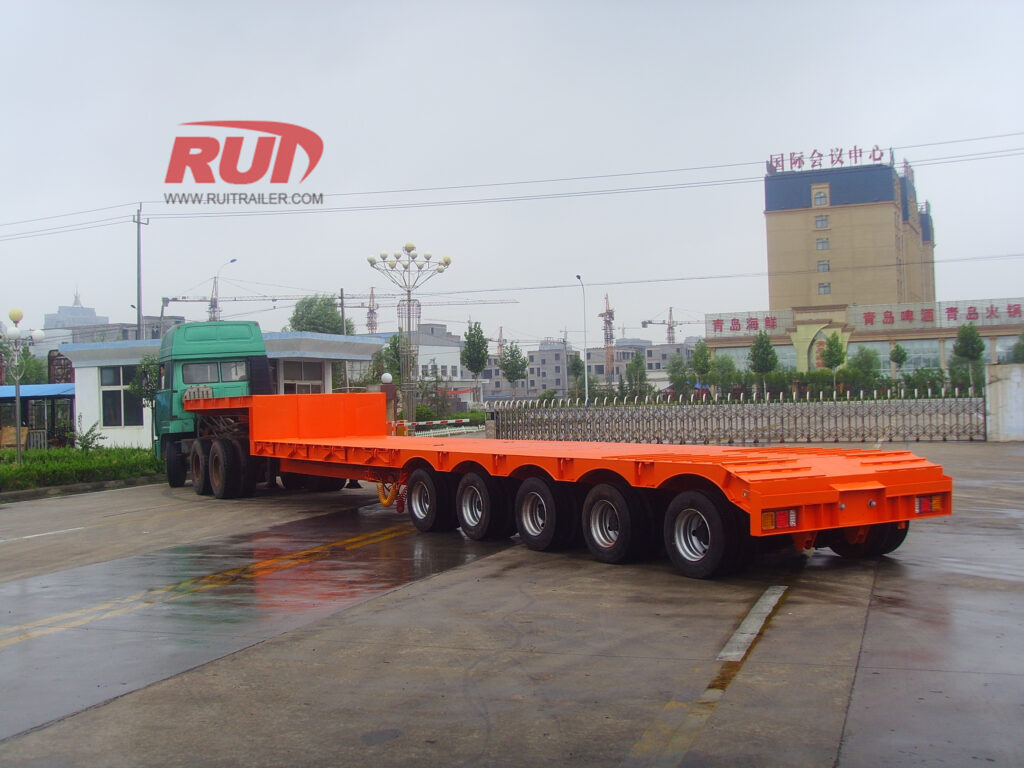

Technical Specifications of Our Low Bed Multi Axle Trailer

We design every low bed multi axle trailer to conquer the most demanding transport challenges. From the chassis composition to the steering logic, our engineering focuses on handling extreme payloads exceeding 130 tons while maintaining superior maneuverability.

Advanced Suspension and Steering Systems

Control is critical when hauling heavy transformers or industrial machinery. Our trailers feature a hydraulic remote steering system, allowing operators to navigate complex routes and tight corners that standard trailers cannot handle.

• Suspension: We utilize heavy-duty air suspension systems with a capacity range of 35–90 tons, ensuring load stability.
• Steering: The hydraulic steering lowbed design minimizes tire wear and reduces the turning radius significantly.
• Axles: Configurations range from 8 to 12 axles, with options for 12, 14, or 16-ton capacity per axle line.

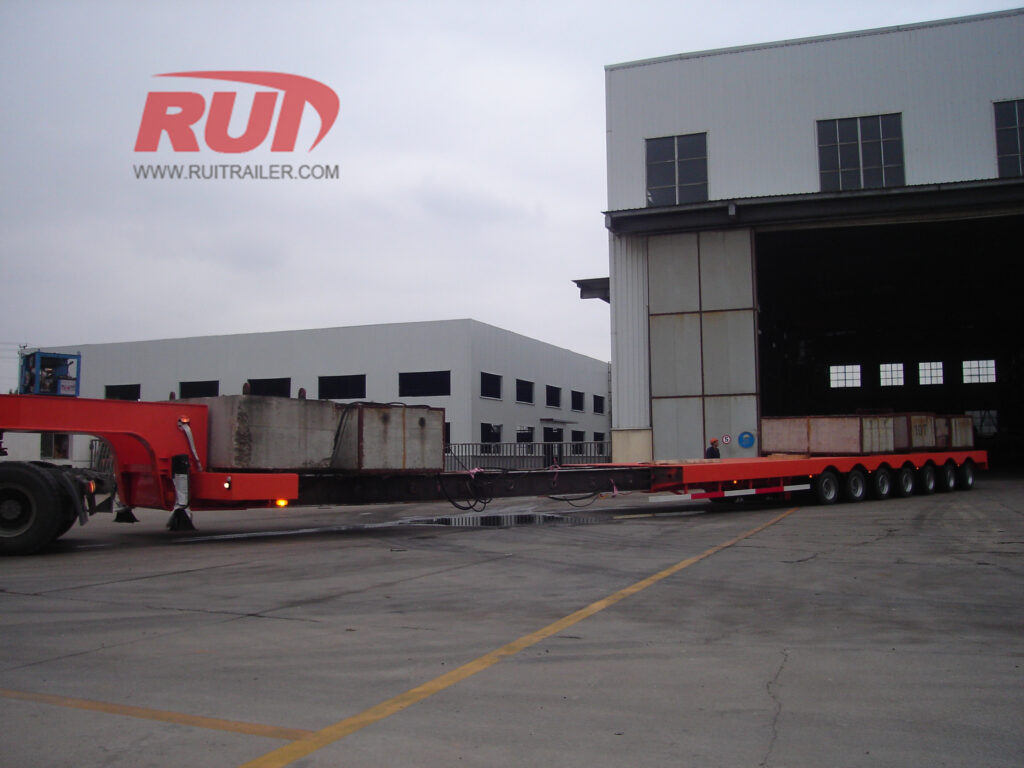

Modular Platform and Dimensions

Flexibility defines our extendable low bed trailer lineup. The platform length adjusts to fit the cargo, not the other way around. Standard lengths start at 8,000 mm but can extend significantly to accommodate long aerospace components or bridge beams.

• Extension: Telescopic beams offer +3,000 mm to +8,000 mm extension capabilities.
• Width: Base widths of 2,500 mm or 3,000 mm are available, with side extensions adding an extra 600 mm. For projects requiring extreme stability, our designs rival the capabilities of a Goldhofer 3600mm width hydraulic modular trailer to handle oversized widths safely.
• Loading Height: Optimized between 850 mm and 1,150 mm to clear height restrictions.

Durability and Safety Standards

We build our frames using high-strength steel (HG60/T700) to prevent structural fatigue under massive loads. Safety is reinforced through premium braking technologies.

• Braking: Standard EBS and ABS systems ensure reliable stopping power.
• Tires: We equip units with robust tire configurations (e.g., 245/70 – 17.5 or 235/75 – 19.5) designed for heavy haul applications.

Quick Spec Overview

Feature	Specification
Axle Configuration	8 – 12 Axles (Standard)
Payload Capacity	80 – 130+ Tons
Platform Length	8,000 mm – 14,500 mm (Extendable)
Total Width	Up to 3,600 mm (with side extensions)
Suspension Type	Air Suspension / Hydraulic Options
Ramp System	Single or Double Foldable Hydraulic Ramps

Industries Served by Our Low Bed Multi Axle Trailer

We engineer our low bed multi axle trailer specifically for special projects where standard transport fails. With a capacity exceeding 130 tons and extendable platforms, we support industries that move the world\’s heaviest assets. Our trailers are the go-to solution for logistics companies handling \”special project\” transportation.

Construction and Heavy Machinery

On major construction sites, moving massive earthmovers is daily business. Our trailers easily transport excavators, mobile cranes, and bulldozers. The high load capacity ensures that even the heaviest industrial machinery is transported safely without exceeding axle load limits.

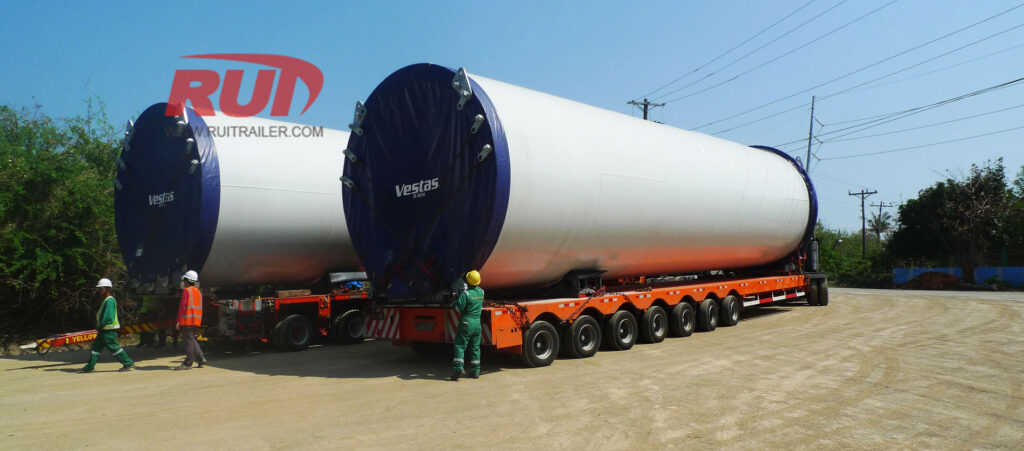

Energy Sector Logistics

The energy sector demands precision. We frequently configure our trailers to haul massive transformers and wind energy components. While specialized equipment like a wind tower trailer is used for specific tower sections, our multi-axle lowbeds are the primary choice for transporting heavy transformers and generation units due to their extreme weight capacity.

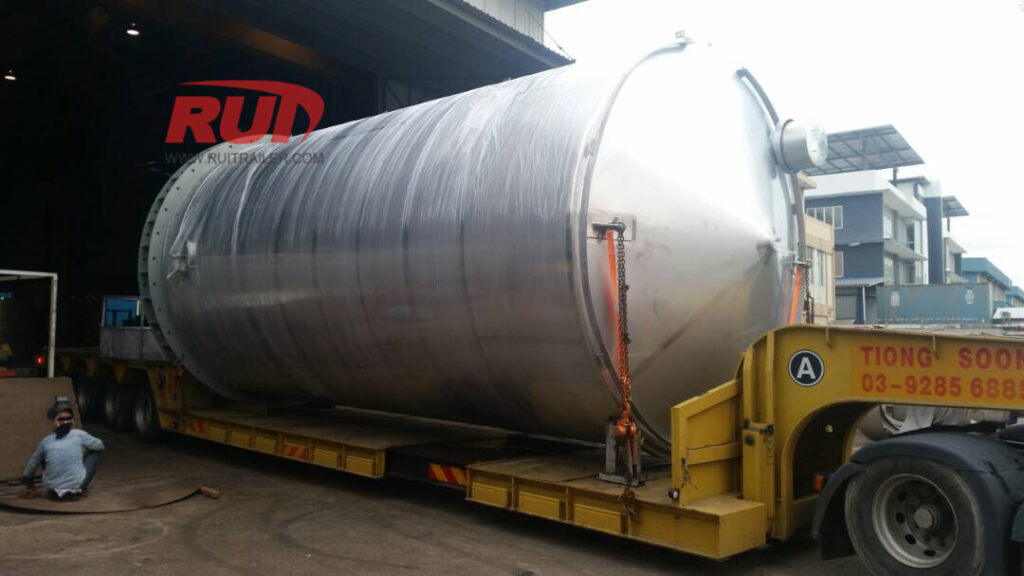

Mining, Oil, and Gas

Remote sites require reliable gear. We build these trailers to haul drilling rigs, pumps, and processing modules over rough terrain. The hydraulic steering systems allow us to navigate these heavy loads through tight access roads common in mining operations.

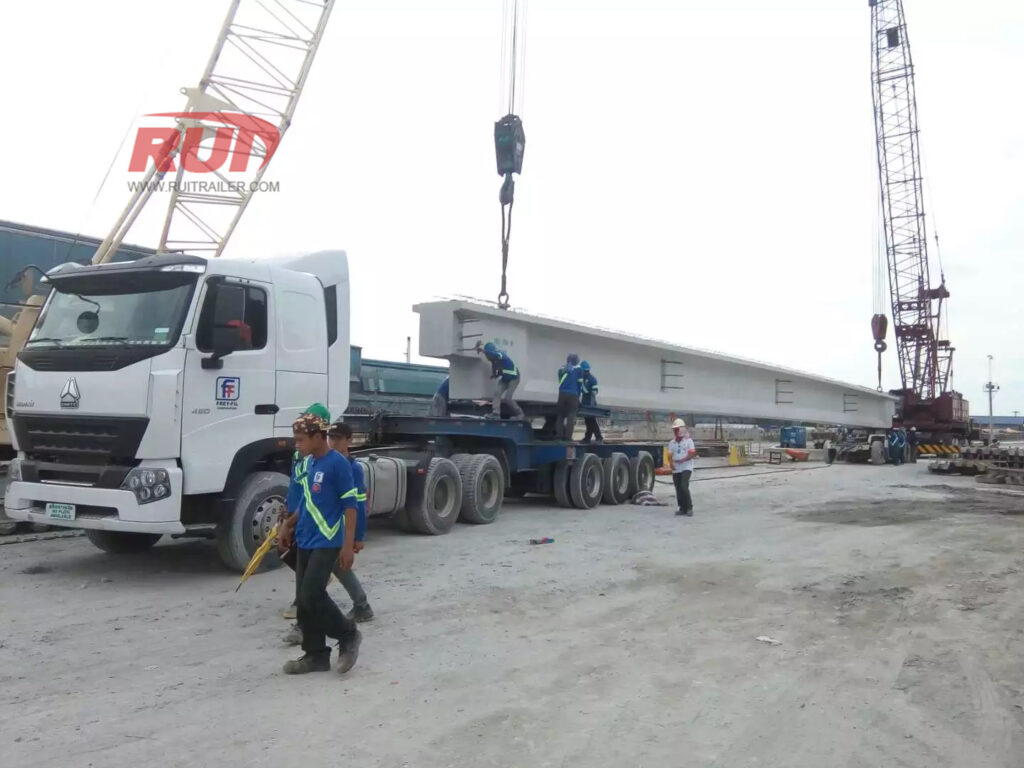

Infrastructure and Special Projects

From bridge beams to aerospace components like airplane wings, our heavy haul lowbed semi trailer adapts to the cargo. The platform extension capabilities (ranging from 3 to 10 meters) allow us to accommodate long, oversized cargo transport trailer needs while maintaining a low center of gravity for stability.

How to Select the Right Multi Axle Low Bed Trailer

Choosing the correct low bed multi axle trailer is about more than just checking the maximum load rating. When dealing with \”special project\” transportation—like moving 130-ton transformers or massive industrial machinery—precision is everything. You need to analyze your cargo\’s specific weight, dimensions, and center of gravity to ensure stability. Our platforms are engineered to handle these extreme payloads, but selecting the right configuration depends on matching the trailer\’s capabilities to your heaviest, most awkward load.

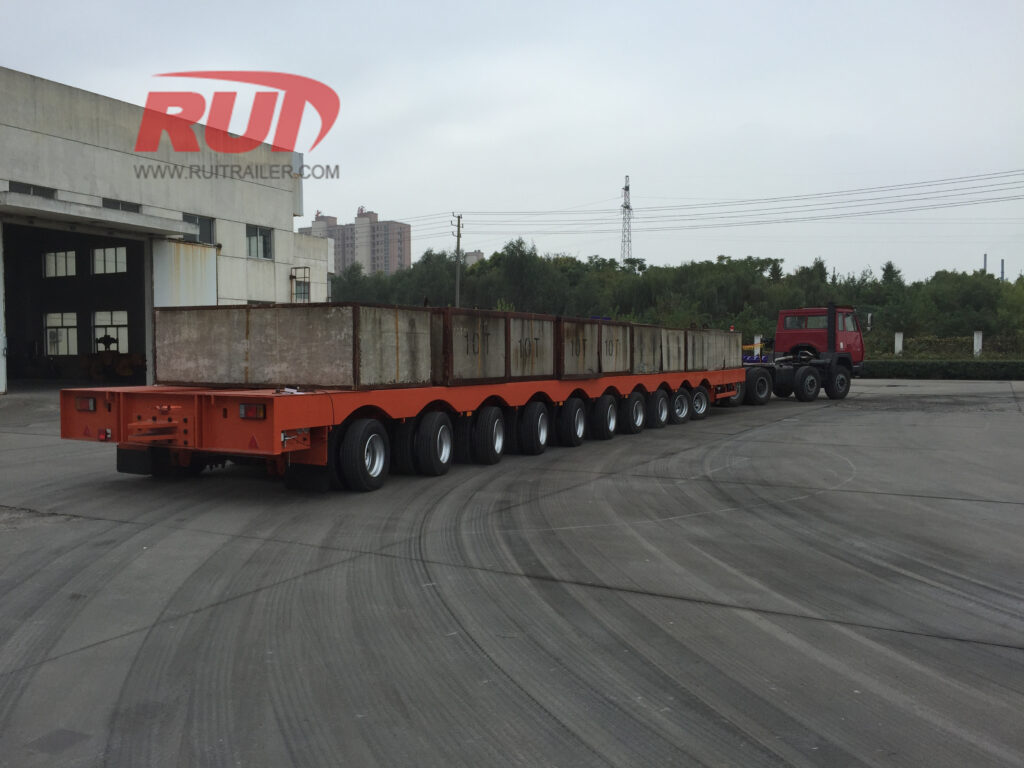

Calculating Realistic Payload and Axle Count

To handle heavy haulage effectively, you must balance the load between the tractor and the trailer axles. A simple gross weight calculation isn\’t enough; you need to look at individual axle loads to prevent road damage and ensure compliance.

• Axle Options: We offer configurations ranging from 8 to 12 axles.
• Capacity per Axle: Choose between 12, 14, or 16-ton capacity options based on your regional road regulations and load density.
• Suspension: Our air suspension systems handle between 35 and 90 tons, providing necessary cushioning for sensitive cargo.

By selecting the correct axle count, you ensure that a multi axle trailer distributes the weight of heavy excavators or crane parts evenly, preventing structural stress.

Navigating Route Restrictions and Steering

Transporting oversized cargo often means navigating tight corners and complex routes. A standard fixed-axle setup will struggle in these environments. We equip our trailers with a hydraulic remote steering system, which is crucial for maneuvering long loads through difficult terrain.

You also need to consider the physical footprint of the trailer on the road:

• Platform Length: Our standard length ranges from 8,000 mm to 14,500 mm, but for extra-long loads like airplane wings, the platform extends by an additional 3,000 mm to 8,000 mm.
• Width Extensions: If your cargo exceeds the standard 2,500 mm width, our side extensions add 600 mm (300 mm per side), accommodating wider machinery safely.

Key Questions to Ask Manufacturers

Before finalizing your purchase of a heavy haul lowbed semi trailer, ask specific questions to ensure the unit meets your operational demands.

• Ramp Type: Do you need single or double foldable hydraulic ramps for loading wheeled equipment?
• Steel Quality: Is the chassis built for high-stress loads? (We use high-strength steel for maximum durability).
• Braking Systems: Does the trailer include standard EBS and ABS for safety on steep grades?
• Tire Specs: Are the tires (e.g., 245/70 – 17.5 or 235/75 – 19.5) rated for the speeds and loads you intend to haul?

•

Customizing Your Low Bed Multi Axle Trailer at RUITRAILER

At RUITRAILER, we know that standard specifications rarely fit the unique demands of heavy haulage. We build every low bed multi axle trailer to align perfectly with your project requirements, ensuring you have the right tool for moving extreme loads like transformers, industrial machinery, and aerospace components.

We offer extensive modification options to optimize performance and safety:

• Tailored Dimensions: We adjust platform lengths between 8,000 mm and 14,500 mm. For wider loads, we include side extensions that expand the deck width up to 3,600 mm.
• Extendable Platforms: Our extendable low bed trailer configurations can stretch from 3 to 10 meters. This is essential for long cargo, offering versatility similar to a dedicated extendable wind blade trailer for energy sector projects.
• Advanced Steering & Suspension: To navigate tight job sites, we equip our units with hydraulic remote steering systems. We also configure the axle count (8 to 12 axles) and air suspension capacity (35–90 tons) based on your terrain.
• Visual Identity: We finish every trailer in your specific RAL colors to match your fleet branding.

From mining sites requiring robust 130-ton capacity haulers to wind farms needing precision maneuverability, our engineering team ensures your hydraulic multi axle trailer is road-legal and export-ready for global operations.

Maintenance, Longevity, and Operating Costs

Investing in a low bed multi axle trailer involves more than just the initial purchase; it requires a commitment to rigorous upkeep to ensure safety and profitability. When you are hauling payloads exceeding 130 tons, the reliability of your equipment is non-negotiable. We design our trailers to withstand extreme stress, but longevity ultimately depends on how well the machine is maintained.

Daily and Periodic Checks: Suspension, Hydraulics, and Tires

To prevent costly downtime, a strict inspection routine is mandatory. Since these trailers feature complex hydraulic multi axle trailer systems, specifically the hydraulic remote steering and foldable ramp mechanisms, fluid levels and line integrity must be checked daily.

• Hydraulic Systems: Inspect hoses and cylinders on the steering system and ramps for leaks. The hydraulic steering is critical for maneuvering 8 to 12-axle configurations.
• Tires and Wheels: With axle capacities ranging from 12 to 16 tons, tire pressure on the 245/70 – 17.5 or 235/75 – 19.5 wheels must be precise to prevent blowouts under heavy loads.
• Suspension: Monitor the air suspension system (35–90 ton capacity) for proper leveling and airbag condition.
• Braking: Routine checks of the EBS and ABS brake systems ensure stopping power is maintained for heavy haulage.

For fleets managing complex repairs, our professional service support ensures your equipment stays road-ready.

Evaluating Total Cost of Ownership (TCO) vs. Initial Price

A heavy haul lowbed semi trailer is a long-term asset. While the upfront cost is a factor, the Total Cost of Ownership (TCO) is the real metric of success. Cheaper alternatives often suffer from structural fatigue when pushed to their limits on special projects. Our trailers use high-grade materials and robust engineering to minimize structural failures.

• Downtime Costs: A failure during a project involving transformers or industrial machinery can cost far more than the price difference of a premium trailer.
• Resale Value: Well-maintained units with documented service histories retain higher value.
• Efficiency: Features like the 3 to 10-meter platform extension and hydraulic steering reduce the need for auxiliary equipment, lowering operational costs.

Maximizing Service Life with Proper Care

Extending the life of a low bed multi axle trailer requires using the equipment within its specified limits. Overloading beyond the 130-ton capacity or ignoring weight distribution across the 8–12 axles accelerates wear.

• Lubrication: Regularly grease all moving parts, especially the turntable and extension beams (up to +8,000 mm).
• Genuine Parts: Replace worn components with OEM-standard parts to maintain the integrity of the hydraulic modular trailer systems.
• Surface Protection: Address scratches or chips in the paint immediately to prevent corrosion, especially if operating in harsh environments.

By adhering to these maintenance protocols, you ensure your multi-axle lowbed remains a reliable workhorse for years.

Why Partner with RUITRAILER for Heavy Haul Needs

Choosing the right partner for your transport equipment is as critical as the load itself. As a dedicated heavy duty lowbed manufacturer, RUITRAILER offers a distinct advantage by connecting you directly with the factory floor. When you invest in a low bed multi axle trailer from us, you eliminate unnecessary middleman costs and gain direct access to our engineering team for precise customizations.

We prioritize structural integrity and long-term reliability in every build. Our manufacturing process enforces strict quality control measures, ensuring that every chassis is constructed from high-tensile steel capable of handling extreme payloads exceeding 130 tons. Whether you need a standard configuration or a complex hydraulic steering solution, we deliver equipment ready for the toughest global environments.

Our Core Advantages:

• Factory-Direct Pricing: Get competitive rates and transparent communication without third-party markups.
• Global Track Record: Our trailers are currently operating in demanding mining and construction sectors worldwide, proving their durability daily.
• Safety First: We integrate top-tier components, including EBS/ABS braking systems and premium axles, to ensure maximum safety on the road.
• Tailored Engineering: We adapt platform lengths, axle counts, and ramp systems to meet your specific project constraints.

If you are ready to upgrade your fleet with a reliable heavy haul lowbed semi trailer, submit your specifications through our simple contact form to get a quote tailored to your operational needs.

FAQ: Common Questions About Multi Axle Low Bed Trailers

What is the maximum payload for a multi-axle low bed trailer?

Our heavy haul lowbed semi trailer configurations are engineered for extreme loads. With an 8 to 12-axle setup, these units can handle payloads exceeding 130 tons. The capacity depends on the specific axle count (12, 14, or 16 tons per axle) and the structural design of the high-strength chassis.

How does hydraulic steering improve maneuverability?

Navigating complex routes with a long, heavy load requires precision. Our hydraulic multi axle trailer designs feature a hydraulic remote steering system. This allows the axles to steer independently, significantly reducing the turning radius and allowing the vehicle to maneuver through tight corners or narrow job sites that a standard trailer could not access.

Can these trailers be customized for specific cargo?

Absolutely. We build to suit your project needs. You can request platform extensions ranging from 3 to 10 meters and side width extensions up to 3,600 mm. We also offer various hydraulic modular trailer accessories, such as single or double foldable hydraulic ramps, and finish the trailer in your company\’s specific RAL color codes.

What suspension type is best for rough terrain?

For these multi-axle lowbeds, we utilize a heavy-duty air suspension system. This setup offers a capacity range of 35 to 90 tons and provides excellent shock absorption. It ensures stability and protects both the cargo and the chassis when transporting heavy industrial machinery over uneven surfaces.

How to obtain pricing and lead times?

Since every low bed multi axle trailer is often tailored to specific project requirements—such as dimension changes or specific axle brands—pricing varies. Please contact us directly with your load specifications. We will provide a detailed quote and estimated production timeline based on your configuration.
