Goldhofer Modular Trailer Alternatives Heavy Haul Fleet Guide

Understanding the Goldhofer THP/SL Standard

In the world of heavy haulage equipment, versatility isn’t just a feature; it’s a requirement. When we talk about the Goldhofer modular trailer, we are discussing the industry benchmark for heavy-duty transport. Just as the market demands specialized solutions for wind energy logistics, the THP/SL series stands out as the definitive standard for moving massive, concentrated loads. This isn’t just about moving weight; it’s about an engineering philosophy that prioritizes safety, stability, and extreme flexibility.

The “Add-and-Go” Modular Concept Explained

The brilliance of the Goldhofer THP/SL compatible system lies in its modular. We utilize an “Add-and-Go” concept that allows operators to configure the trailer length and width based on the specific cargo requirements. Whether you are transporting a transformer or a bridge section, the ability to couple modules longitudinally and laterally transforms a standard fleet into a custom engineering solution.

• Unlimited Combinations: Connect 2, 3, 4, or 6-axle modules seamlessly.
• Interoperability: Our modules are designed to mechanically and hydraulically integrate with existing Goldhofer THP/SL fleets.
• Rapid Reconfiguration: Minimize downtime by quickly adjusting the trailer configuration between jobs.

Key Specifications: Axle Loads and Suspension Stroke

To handle the extreme demands of heavy transportation, the technical anatomy of these trailers must be robust. The core of this performance is the hydraulic pendulum axle system. Much like the advanced PL2 technology used in specialized flat trailers, our compatible modules offer superior maneuverability and load distribution.

• Axle Load Capacity: We engineer these modules to handle up to 45 tons per axle line at low speeds, ensuring massive structures are supported safely.
• Suspension Stroke: A generous hydraulic suspension stroke (typically ±300mm) allows for equal axle load distribution, even on uneven off-road terrain.
• Steering Angle: High steering angles ensure that even the longest configurations can navigate tight job site corners.

Why These Benchmarks Matter in Heavy Haulage

In this industry, equipment failure is not an option. The high axle load capacity and robust high tensile steel chassis are critical for maintaining a low center of gravity and preventing tipping accidents. When transporting high-value cargo like wind turbine components or industrial vessels, the stability provided by a synchronized hydraulic multi-axle trailer system is the difference between a successful delivery and a logistical nightmare. By adhering to these rigorous standards, we ensure that every axle line contributes to the safety and efficiency of the operation.

The RUITRAILER Compatibility Advantage

When we build a hydraulic multi-axle trailer, we understand that it needs to work seamlessly with the equipment you already have in your yard. Our primary focus is ensuring full Goldhofer THP/SL compatible performance. You should not have to worry about whether a new module will fit your existing fleet. We engineered our units for total trailer interoperability, allowing you to couple our modules directly with your original German-made vehicles without any modifications.

Here is how we ensure seamless integration for your heavy transportation projects:

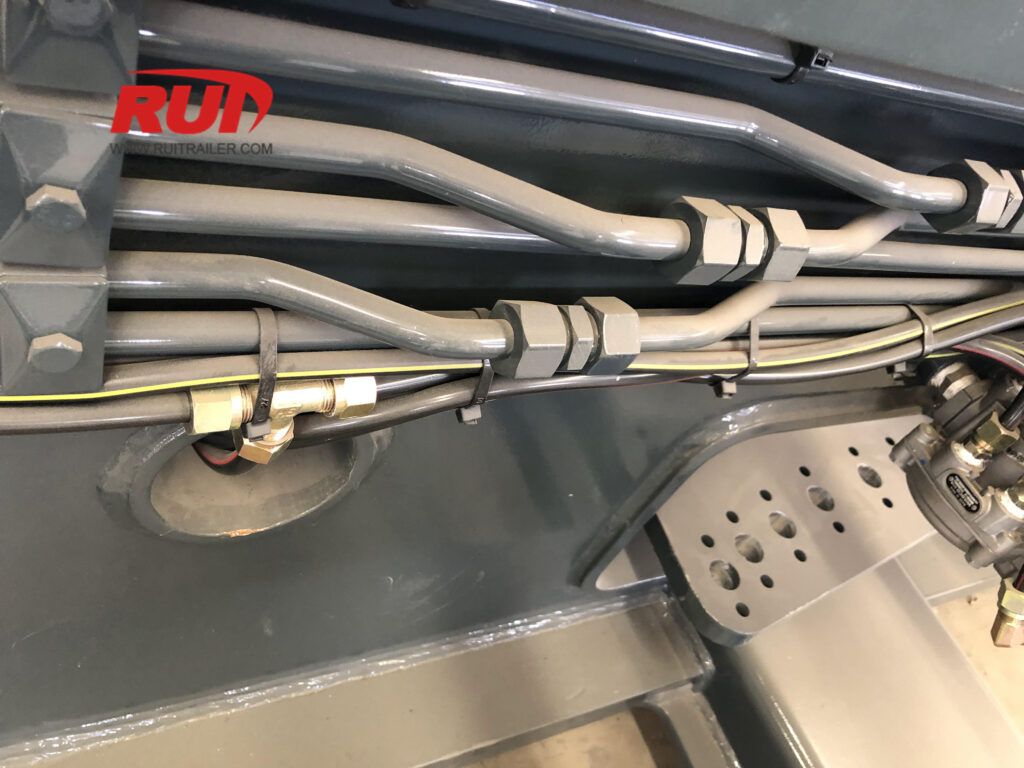

• Hydraulic Synchronization: We use standard hydraulic components and couplings that match the exact flow and pressure requirements of the THP/SL system. The steering and suspension lines connect instantly, ensuring the entire combination reacts as one unit.

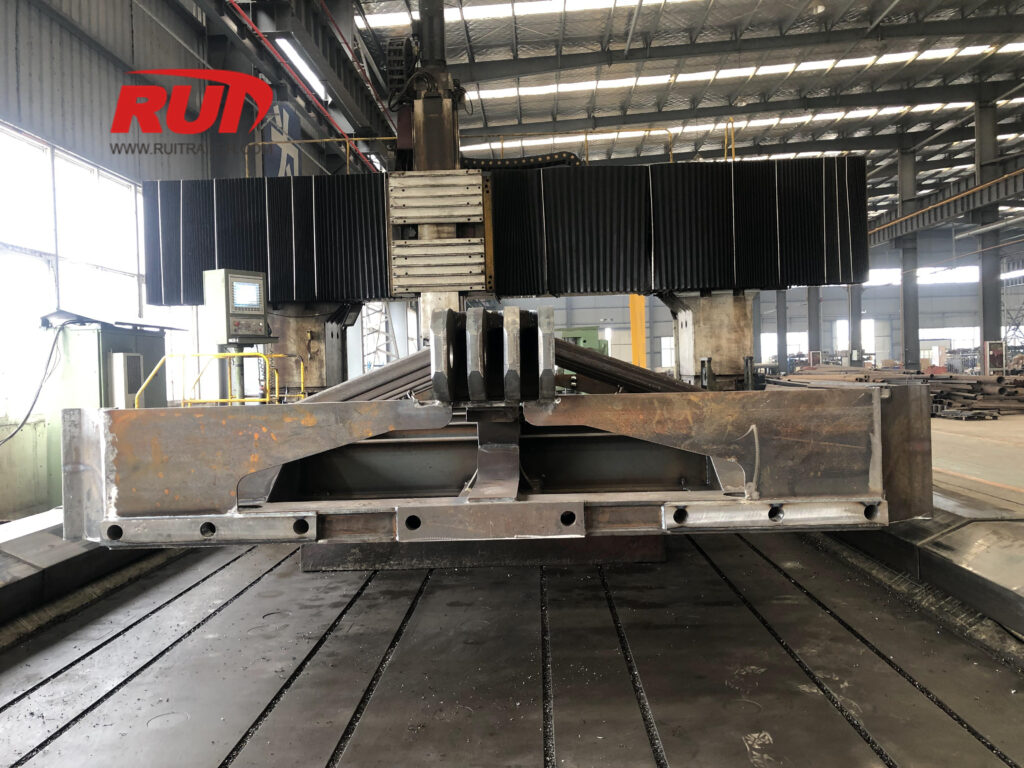

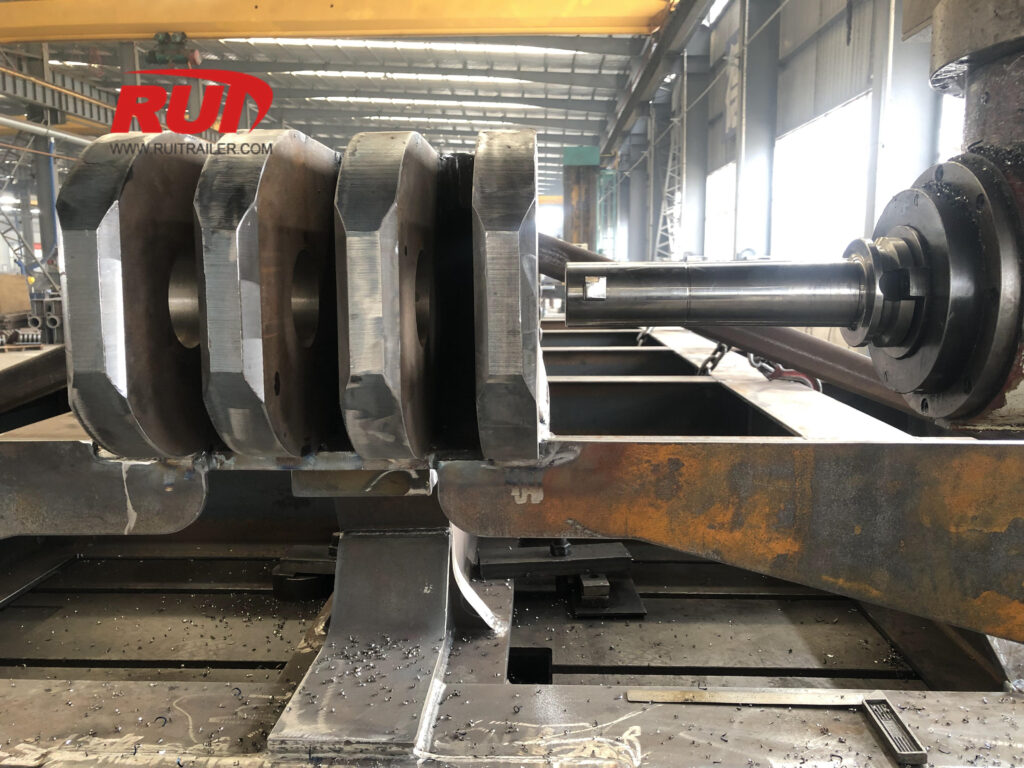

• Mechanical Precision: The connecting bolts, coupling ears, and pin placements are precision-machined. Whether you are extending the length end-to-end or adding width in a side-by-side configuration, the mechanical fit is exact.

Compatibility means nothing if the strength isn’t there. We construct every unit using a high tensile steel chassis (Q690E) to match the yield strength standards of the original equipment. This ensures that our heavy-duty modules maintain the same structural rigidity and 45 tons per axle capacity you rely on. It is a robust solution that keeps your fleet versatile while optimizing your investment.

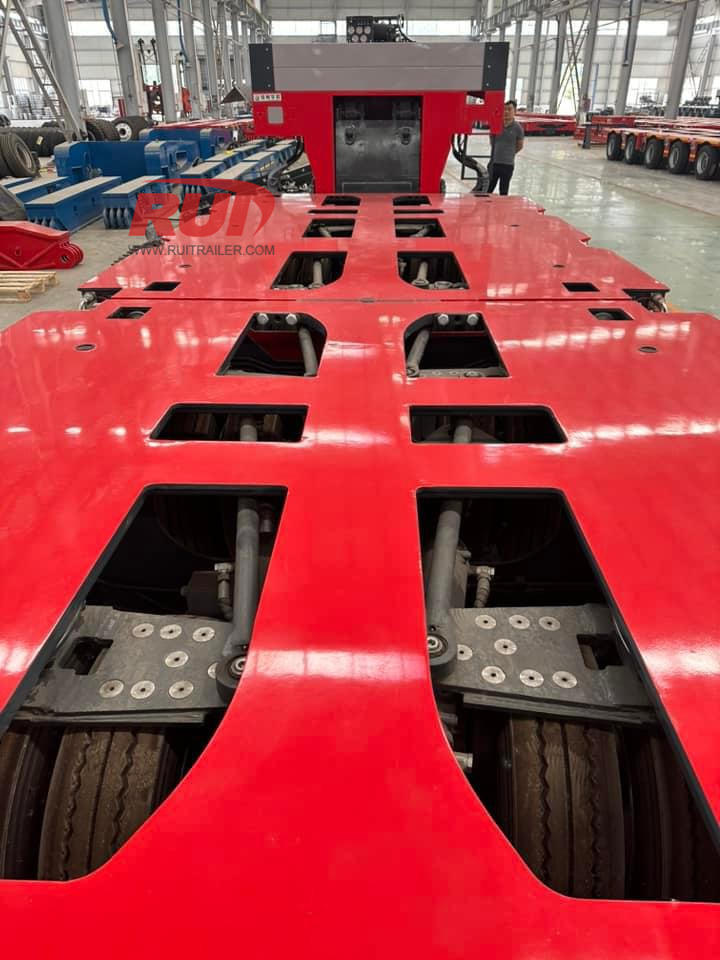

Technical Anatomy of a Heavy-Duty Module

When we engineer a Goldhofer modular trailer compatible unit, we focus on three critical systems that define performance in heavy haulage equipment. We don’t just weld steel; we engineer stability.

Rigid Box-Shaped Center Frame

The backbone of our module is the chassis. We utilize a reinforced box-shaped center frame constructed from high tensile steel. This design provides the extreme torsional rigidity needed to handle high point loads without warping. It ensures that the heavy-duty modules remain stable even when coupled in long longitudinal combinations for massive structures.

Hydraulic Pendulum Axles & Suspension

To manage massive weight on uneven surfaces, we use the hydraulic pendulum axle. This technology is essential for maintaining stability and protecting the load.

• Equalized Pressure: The hydraulic system distributes the load evenly across all tires, preventing overload on specific points.
• Off-Road Capability: High suspension stroke allows for safe transport over rough terrain in mining or construction sites.
• Load Safety: Minimizes stress on the cargo during transport.

Steering System Configurations

Precision is non-negotiable. Our modules offer robust steering solutions designed for seamless trailer interoperability.

Feature	Mechanical Steering System	Electronic Steering
Mechanism	Tie rods and steering arms	Hydraulic cylinders + Sensors
Reliability	Extremely high (low maintenance)	High precision
Application	Standard on-road transport	Complex maneuvers / SPMT
Compatibility	Fully Goldhofer THP/SL compatible	Specialized configurations

By sticking to these rigorous standards, we ensure that our hydraulic multi-axle trailer units integrate perfectly into your existing fleet, delivering the reliability you expect from top-tier heavy lift transport solutions.

Essential Accessories for Modular Configuration

To get the most out of a Goldhofer modular trailer, you need the right toolkit. The versatility of these heavy-duty modules relies heavily on the accessories we pair them with. It is not just about having enough axle lines; it is about configuring the trailer to match the specific geometry and weight of the cargo, whether it is a transformer or a bridge section.

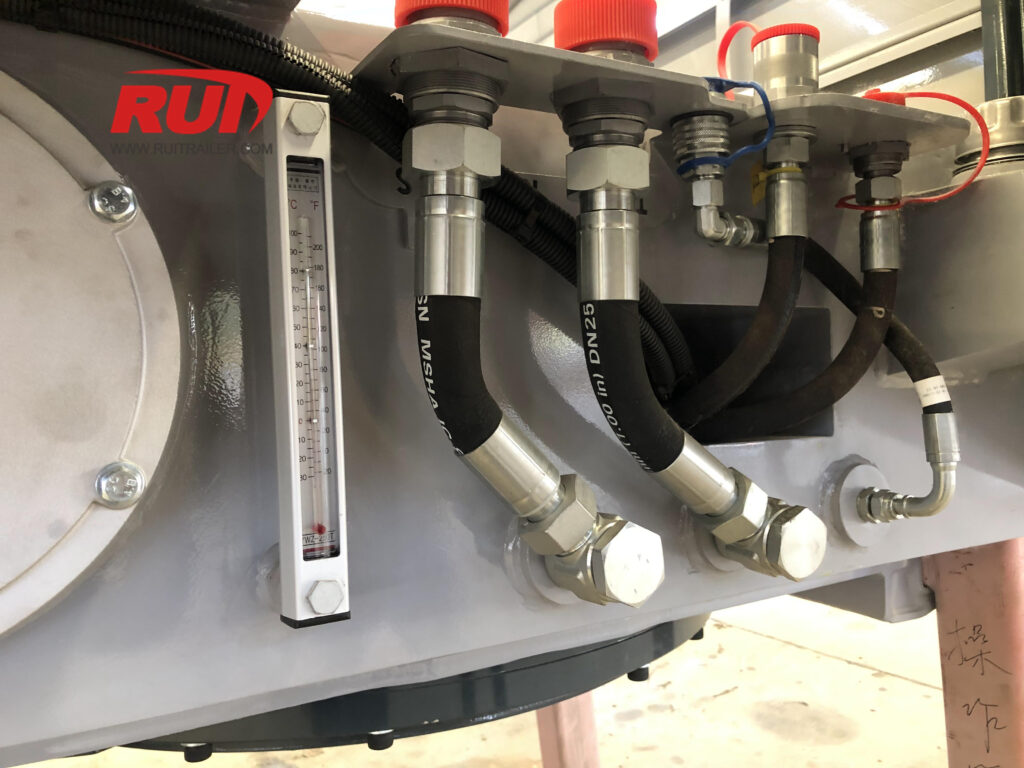

Hydraulic Goosenecks for Prime Mover Connections

The modular trailer gooseneck is the critical link between your prime mover and the trailer chassis. We use a hydraulic design that does more than just tow; it actively manages the steering and suspension systems.

• Steering Synchronization: The gooseneck transfers steering inputs from the tractor to the hydraulic multi-axle trailer, ensuring the wheels follow the truck’s path precisely.
• Height Adjustment: Hydraulic cylinders allow you to raise or lower the front of the trailer to clear obstacles or adjust for uneven terrain.
• Load Distribution: It helps transfer weight onto the tractor’s fifth wheel, optimizing traction and stability.

Drop Decks and Vessel Bridges for Tall Cargo

When height is the enemy, a flat deck won’t cut it. For heavy lift transport solutions involving tall industrial components, we integrate specialized decks between the bogies.

• Heavy Duty Drop Deck: These lower the loading height significantly, allowing you to transport tall machinery under bridges and power lines.
• Vessel Bridges: Designed for extreme loads like reactor vessels. They clamp onto the cargo or support it on beams, using the cargo itself as part of the structural rigidity in some cases.
• Excavator Decks: specifically engineered with a recess to accommodate the boom of construction equipment, reducing the overall transport height.

Power Packs (PPU) and Intermediate Spacers

A Goldhofer THP/SL compatible system often requires independent power and extra length.

• Power Unit (PPU): When the prime mover’s hydraulics aren’t enough, or for self-propelled modes, a PPU provides the necessary pressure for steering and lifting functions. It ensures your hydraulic components operate smoothly under maximum load.
• Intermediate Spacers: Sometimes you need length, not capacity. Spacers (6m, 9m, or custom lengths) extend the wheelbase to spread the load over a bridge or accommodate long materials like wind tower sections without the cost and weight of adding more live axle lines.

By mixing and matching these modular trailer accessories, we transform a standard module into a specialized tool ready for any logistical challenge.

Real-World Applications for Goldhofer Modular Trailers

We know that versatility is the backbone of the heavy haulage equipment industry. Our modular solutions, fully compatible with the Goldhofer modular trailer standard (THP/SL), are engineered to tackle the most demanding logistics challenges across various sectors. By utilizing a hydraulic multi-axle trailer system, we provide the flexibility needed to switch between industries without changing your entire fleet.

Transporting Wind Energy Components

The wind sector is driving the demand for specialized transport. As turbines grow larger, the logistics become more complex.

• Turbine Blades: Modern blades require extreme length. Our modules integrate with extendable spacers or blade lifters to safely navigate corners.
• Tower Sections: These top-heavy loads demand superior lateral stability. The hydraulic pendulum axle technology ensures the trailer remains level, even when the center of gravity is high.
• Nacelles: Massive weights require concentrated load capacity, which our wind turbine transport trailer configurations deliver effortlessly.

Heavy Off-Road Mining and Construction

In the mining sector, equipment doesn’t just need to be strong; it needs to survive harsh environments. We design our chassis with high-tensile steel to withstand the rigors of off-road logistics.

• Terrain Compensation: The high suspension stroke allows the trailer to “walk” over rocks and uneven ground, keeping the deck level.
• Massive Payloads: From excavators to crushers, our heavy lift transport solutions handle concentrated loads that would break standard trailers.

Bridge Construction and Precast Logistics

Infrastructure projects often require moving long, heavy concrete beams into tight spaces.

• Precision Steering: Mechanical and electronic steering options allow for exact positioning of precast beams on construction sites.
• Interoperability: Our modules can be coupled to form long combinations, distributing the weight of massive bridge sections effectively across multiple axle lines to meet local road regulations.

Buying Guide: OEM vs. Goldhofer Modular Trailer Compatible Solutions

When expanding a fleet for heavy haulage equipment, the choice between Original Equipment Manufacturer (OEM) units and compatible solutions is critical. As a platform provider, I see firsthand how this decision impacts your bottom line. While the OEM offers the security of a legacy brand, our Goldhofer THP/SL compatible modules provide a strategic advantage in terms of flexibility and cost-efficiency without compromising on technical standards.

Analyzing Total Cost of Ownership (TCO)

The initial purchase price is just the tip of the iceberg. To truly understand the value, we have to look at the Total Cost of Ownership (TCO).

• Capital Investment: Compatible modules significantly reduce the upfront capital required per axle line, allowing you to acquire more capacity for the same budget.
• Maintenance: Our units utilize standard, globally sourced hydraulic and pneumatic components. This means you aren’t locked into expensive proprietary parts, keeping long-term maintenance costs down.
• Resale Value: Because we adhere to strict manufacturing standards using high tensile steel chassis, these trailers maintain their structural integrity, ensuring decent residual value.

Comparing Lead Times and Production Speed

In the logistics world, waiting six months for equipment can mean losing a contract. Major OEMs often have rigid production schedules and long backlogs. We prioritize agility.

• Faster Turnaround: We can often deliver heavy lift transport solutions in a fraction of the time it takes for OEM production.
• Project Readiness: This speed allows you to bid on upcoming projects with confidence, knowing your hydraulic multi-axle trailer will be ready when the cargo is.

Customization Options for Specific Project Needs

Standard catalogs don’t always fit complex projects. Whether you are handling wind turbine transport or specialized industrial moves, off-the-shelf solutions might fall short.

• Tailored Engineering: We don’t just sell part numbers; we build to spec. If you need specific lashing points, reinforced decks, or unique gooseneck configurations, we adjust the design.
• Seamless Integration: Our focus is on trailer interoperability. We ensure that any custom modification still integrates perfectly mechanically and hydraulically with your existing Goldhofer fleet, ensuring safe and efficient operations.

Maintenance, Parts, and Durability

Keeping a Goldhofer modular trailer or our compatible heavy-duty modules operational shouldn’t be a logistical nightmare. We understand that in heavy transportation, every hour of downtime costs money. That is why we prioritize accessibility and structural integrity in our manufacturing process to ensure your fleet stays on the road.

Sourcing Standard Hydraulic and Pneumatic Parts

We design our hydraulic multi-axle trailer systems using globally standardized components. You do not need to rely on a single supplier for critical consumables, which simplifies your supply chain.

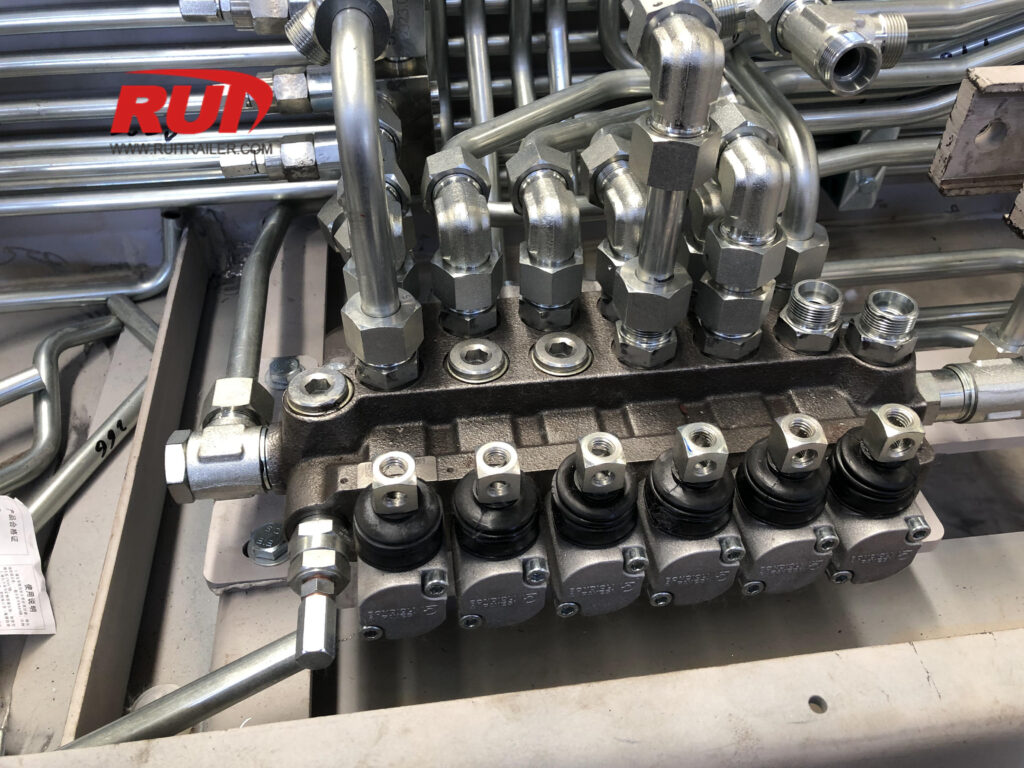

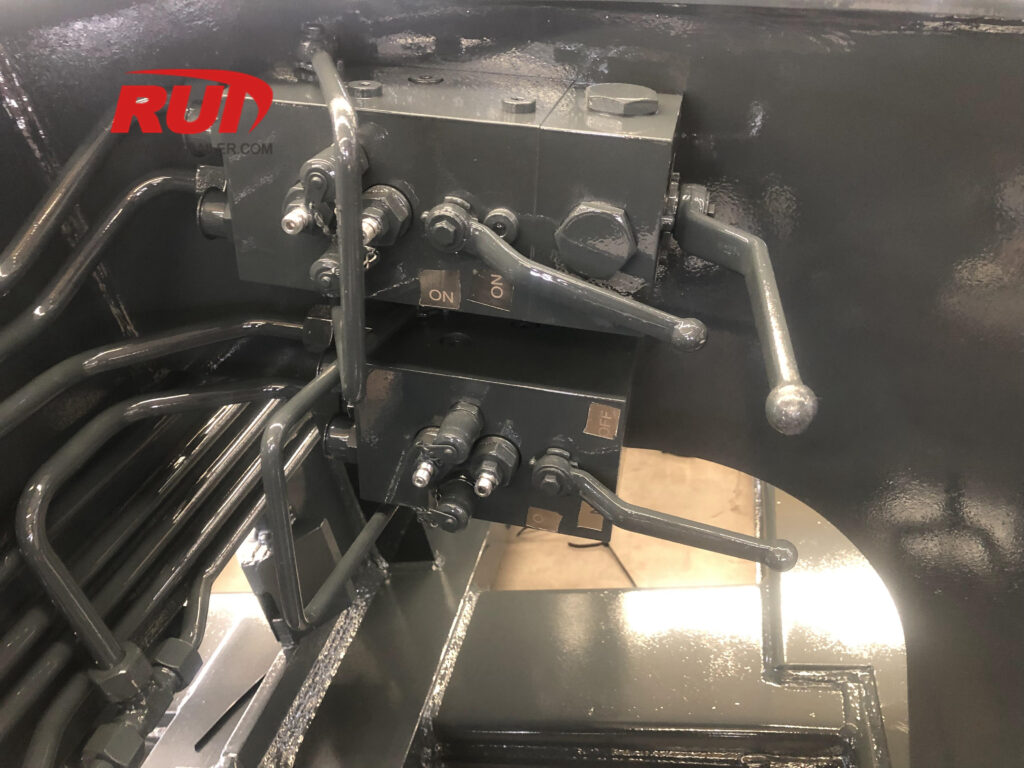

• Hydraulic Components: We use standard valves, seals, and hoses that are fully compatible with THP/SL systems.
• Pneumatics: Brake valves and connectors are industry-standard, making replacements easy to source locally anywhere in the world.
• Interchangeability: Our parts are designed to match Goldhofer THP/SL compatible specs, ensuring your maintenance team can swap out components without complex modifications.

Anti-Corrosion Painting and Welding Integrity

Heavy haulage equipment faces harsh environments, from salty coastal roads to abrasive mining sites. To protect your investment, we apply rigorous surface treatments comparable to top-tier European standards.

• Chassis Protection: We use high-grade anti-corrosion painting processes to seal the steel against the elements, preventing rust on the axle line and frame.

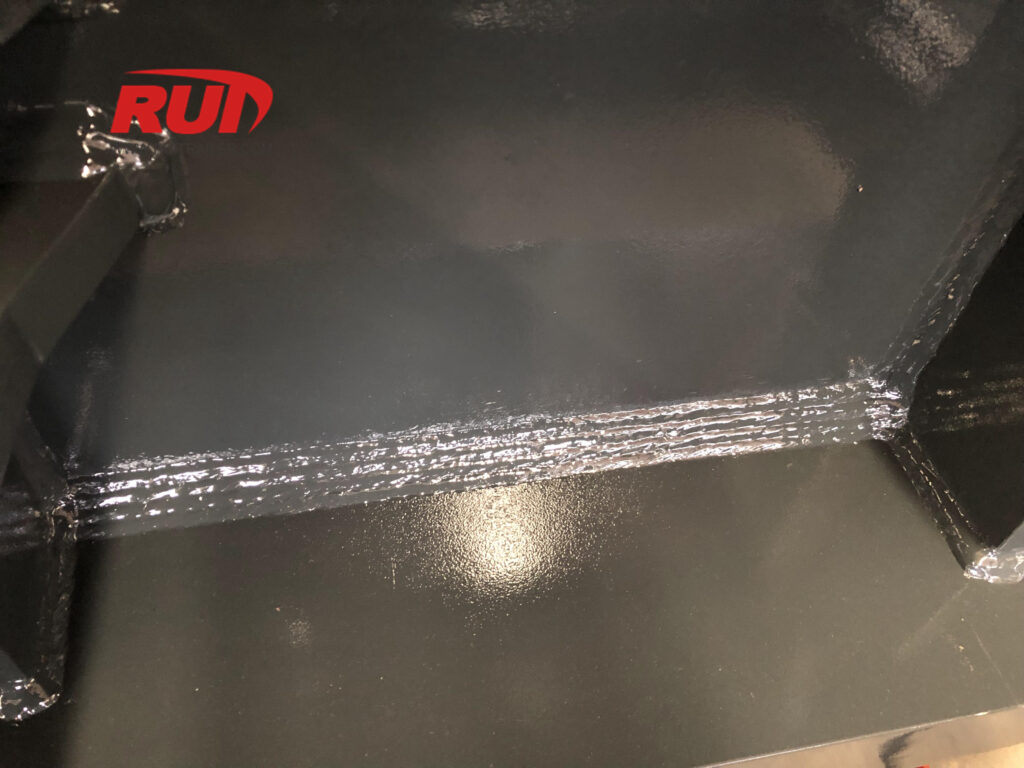

• Welding Quality: Our high tensile steel chassis features precision welding to handle the immense stress of 45 tons per axle loads without structural fatigue or cracking.

Ensuring Long-Term Fleet Reliability

Durability is about more than just steel; it is about consistent performance. By combining a robust box-shaped center frame with accessible spare parts, we ensure your fleet remains ready for massive structures and heavy lift transport solutions. Regular maintenance on the hydraulic pendulum axles and steering systems extends the lifecycle of the vehicle, maximizing your return on investment and maintaining high resale value for your commercial vehicles.

Frequently Asked Questions (FAQs)

Can RUITRAILER modules connect directly to Goldhofer THP/SL?

Absolutely. We engineered our heavy-duty modules specifically for total trailer interoperability. You can mechanically couple our units with your existing Goldhofer THP/SL compatible fleet without any modifications. The connecting bolts, hydraulic couplings, and structural dimensions align perfectly, allowing for a seamless “Add-and-Go” configuration. This means you can expand your fleet capacity instantly without retiring your current assets.

What is the maximum axle load capacity per line?

Our standard configuration delivers a robust 45-ton axle load capacity per axle line at low speeds (0.5 km/h). This matches the rigorous industry benchmark for heavy haulage equipment, ensuring you can handle massive structures like transformers, generator sets, or mining gear safely. The high tensile steel chassis is constructed to withstand these extreme concentrated loads while maintaining structural rigidity.

How does the hydraulic steering system synchronize?

The system utilizes a standard dual-circuit hydraulic steering system that mirrors the OEM design. When connected, the hydraulic fluid flows through the entire combination, ensuring every hydraulic pendulum axle steers in perfect unison with the prime mover or modular trailer gooseneck. There is no lag or calibration difference when mixing brands, ensuring safe maneuverability on tight job sites.

Are replacement parts interchangeable with OEM units?

Yes. We prioritize ease of maintenance for global operations. Most consumable parts, such as hydraulic valves, seals, bearings, and tires, are standard components used in heavy lift transport solutions worldwide. This simplifies your inventory management and ensures you aren’t locked into expensive proprietary supply chains for your hydraulic multi-axle trailer.
